Web Voyager

由 He 等人提出的WebVoyager 是一个具有视觉能力的网页浏览智能体，能够控制鼠标和键盘。

它通过查看每一轮标注的浏览器截图，然后选择下一步要采取的行动来工作。该智能体架构是一个基本的推理与行动（ReAct）循环。该智能体的独特之处在于： - 它使用类似 Set-of-Marks 的图像标注作为智能体的 UI 可供性（affordances） - 它通过使用工具控制鼠标和键盘来在浏览器中应用

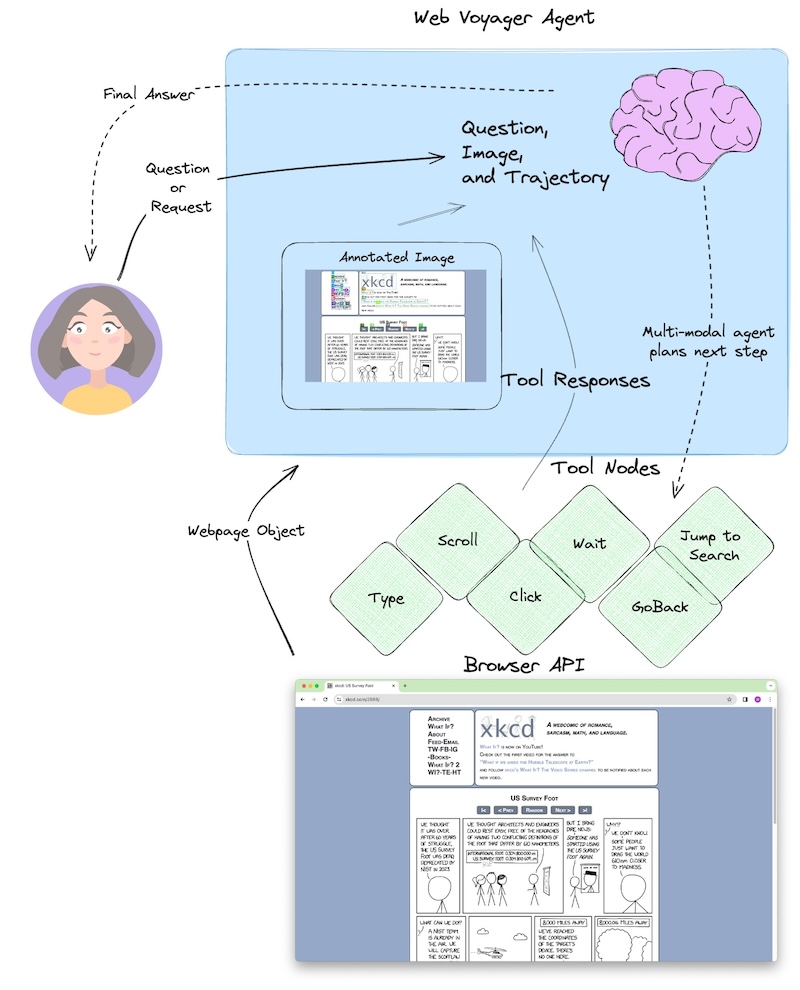

整体设计如下所示

设置

首先，我们来安装所需的包

pip install -U --quiet langgraph langsmith langchain_openai

import os
from getpass import getpass


def _getpass(env_var: str):
    if not os.environ.get(env_var):
        os.environ[env_var] = getpass(f"{env_var}=")


_getpass("OPENAI_API_KEY")

设置 LangSmith 以进行 LangGraph 开发

注册 LangSmith 以快速发现问题并提高 LangGraph 项目的性能。LangSmith 允许您使用跟踪数据调试、测试和监控使用 LangGraph 构建的 LLM 应用程序 — 在此处阅读更多关于如何开始的信息。

安装智能体要求

我们唯一的额外要求是 playwright 浏览器。请取消下方代码的注释并安装

%pip install --upgrade --quiet  playwright > /dev/null
!playwright install

import nest_asyncio

# This is just required for running async playwright in a Jupyter notebook
nest_asyncio.apply()

辅助文件

我们将使用一些 JS 代码进行本教程，您应将其放在一个名为 mark_page.js 的文件中，该文件与您运行本教程的 notebook 位于同一目录中。

定义图

定义图状态

该状态为图中的每个节点提供输入。

在我们的例子中，智能体将跟踪网页对象（在浏览器中）、标注的图像 + 边界框、用户的初始请求以及包含智能体暂存区、系统提示和其他信息的消息。

API 参考：BaseMessage | SystemMessage

from typing import List, Optional
from typing_extensions import TypedDict

from langchain_core.messages import BaseMessage, SystemMessage
from playwright.async_api import Page


class BBox(TypedDict):
    x: float
    y: float
    text: str
    type: str
    ariaLabel: str


class Prediction(TypedDict):
    action: str
    args: Optional[List[str]]


# This represents the state of the agent
# as it proceeds through execution
class AgentState(TypedDict):
    page: Page  # The Playwright web page lets us interact with the web environment
    input: str  # User request
    img: str  # b64 encoded screenshot
    bboxes: List[BBox]  # The bounding boxes from the browser annotation function
    prediction: Prediction  # The Agent's output
    # A system message (or messages) containing the intermediate steps
    scratchpad: List[BaseMessage]
    observation: str  # The most recent response from a tool

定义工具

该智能体有 6 个简单的工具

  1. 点击（在标注框处）
  2. 输入文本
  3. 滚动
  4. 等待
  5. 返回
  6. 前往搜索引擎 (Google)

我们在下方将它们定义为函数

import asyncio
import platform


async def click(state: AgentState):
    # - Click [Numerical_Label]
    page = state["page"]
    click_args = state["prediction"]["args"]
    if click_args is None or len(click_args) != 1:
        return f"Failed to click bounding box labeled as number {click_args}"
    bbox_id = click_args[0]
    bbox_id = int(bbox_id)
    try:
        bbox = state["bboxes"][bbox_id]
    except Exception:
        return f"Error: no bbox for : {bbox_id}"
    x, y = bbox["x"], bbox["y"]
    await page.mouse.click(x, y)
    # TODO: In the paper, they automatically parse any downloaded PDFs
    # We could add something similar here as well and generally
    # improve response format.
    return f"Clicked {bbox_id}"


async def type_text(state: AgentState):
    page = state["page"]
    type_args = state["prediction"]["args"]
    if type_args is None or len(type_args) != 2:
        return (
            f"Failed to type in element from bounding box labeled as number {type_args}"
        )
    bbox_id = type_args[0]
    bbox_id = int(bbox_id)
    bbox = state["bboxes"][bbox_id]
    x, y = bbox["x"], bbox["y"]
    text_content = type_args[1]
    await page.mouse.click(x, y)
    # Check if MacOS
    select_all = "Meta+A" if platform.system() == "Darwin" else "Control+A"
    await page.keyboard.press(select_all)
    await page.keyboard.press("Backspace")
    await page.keyboard.type(text_content)
    await page.keyboard.press("Enter")
    return f"Typed {text_content} and submitted"


async def scroll(state: AgentState):
    page = state["page"]
    scroll_args = state["prediction"]["args"]
    if scroll_args is None or len(scroll_args) != 2:
        return "Failed to scroll due to incorrect arguments."

    target, direction = scroll_args

    if target.upper() == "WINDOW":
        # Not sure the best value for this:
        scroll_amount = 500
        scroll_direction = (
            -scroll_amount if direction.lower() == "up" else scroll_amount
        )
        await page.evaluate(f"window.scrollBy(0, {scroll_direction})")
    else:
        # Scrolling within a specific element
        scroll_amount = 200
        target_id = int(target)
        bbox = state["bboxes"][target_id]
        x, y = bbox["x"], bbox["y"]
        scroll_direction = (
            -scroll_amount if direction.lower() == "up" else scroll_amount
        )
        await page.mouse.move(x, y)
        await page.mouse.wheel(0, scroll_direction)

    return f"Scrolled {direction} in {'window' if target.upper() == 'WINDOW' else 'element'}"


async def wait(state: AgentState):
    sleep_time = 5
    await asyncio.sleep(sleep_time)
    return f"Waited for {sleep_time}s."


async def go_back(state: AgentState):
    page = state["page"]
    await page.go_back()
    return f"Navigated back a page to {page.url}."


async def to_google(state: AgentState):
    page = state["page"]
    await page.goto("https://www.google.com/")
    return "Navigated to google.com."

定义智能体

该智能体由多模态模型驱动，并决定每一步采取的行动。它由一些 runnable 对象组成

  1. 一个 mark_page 函数，用于使用边界框标注当前页面
  2. 一个 prompt，用于保存用户问题、标注的图像和智能体暂存区
  3. GPT-4V 用于决定下一步
  4. 用于提取行动的解析逻辑

我们首先定义标注步骤

浏览器标注

此函数使用编号的边界框标注所有按钮、输入框、文本区域等。然后 GPT-4V 只需在采取行动时引用边界框，从而降低了整个任务的复杂性。

API 参考：chain

import base64

from langchain_core.runnables import chain as chain_decorator

# Some javascript we will run on each step
# to take a screenshot of the page, select the
# elements to annotate, and add bounding boxes
with open("mark_page.js") as f:
    mark_page_script = f.read()


@chain_decorator
async def mark_page(page):
    await page.evaluate(mark_page_script)
    for _ in range(10):
        try:
            bboxes = await page.evaluate("markPage()")
            break
        except Exception:
            # May be loading...
            asyncio.sleep(3)
    screenshot = await page.screenshot()
    # Ensure the bboxes don't follow us around
    await page.evaluate("unmarkPage()")
    return {
        "img": base64.b64encode(screenshot).decode(),
        "bboxes": bboxes,
    }

智能体定义

现在我们将此函数与 prompt、llm 和输出解析器组合起来，以完成我们的智能体。

API 参考：StrOutputParser | RunnablePassthrough | ChatOpenAI

from langchain import hub
from langchain_core.output_parsers import StrOutputParser
from langchain_core.runnables import RunnablePassthrough
from langchain_openai import ChatOpenAI


async def annotate(state):
    marked_page = await mark_page.with_retry().ainvoke(state["page"])
    return {**state, **marked_page}


def format_descriptions(state):
    labels = []
    for i, bbox in enumerate(state["bboxes"]):
        text = bbox.get("ariaLabel") or ""
        if not text.strip():
            text = bbox["text"]
        el_type = bbox.get("type")
        labels.append(f'{i} (<{el_type}/>): "{text}"')
    bbox_descriptions = "\nValid Bounding Boxes:\n" + "\n".join(labels)
    return {**state, "bbox_descriptions": bbox_descriptions}


def parse(text: str) -> dict:
    action_prefix = "Action: "
    if not text.strip().split("\n")[-1].startswith(action_prefix):
        return {"action": "retry", "args": f"Could not parse LLM Output: {text}"}
    action_block = text.strip().split("\n")[-1]

    action_str = action_block[len(action_prefix) :]
    split_output = action_str.split(" ", 1)
    if len(split_output) == 1:
        action, action_input = split_output[0], None
    else:
        action, action_input = split_output
    action = action.strip()
    if action_input is not None:
        action_input = [
            inp.strip().strip("[]") for inp in action_input.strip().split(";")
        ]
    return {"action": action, "args": action_input}


# Will need a later version of langchain to pull
# this image prompt template
prompt = hub.pull("wfh/web-voyager")

llm = ChatOpenAI(model="gpt-4-vision-preview", max_tokens=4096)
agent = annotate | RunnablePassthrough.assign(
    prediction=format_descriptions | prompt | llm | StrOutputParser() | parse
)

编译图

我们已经创建了大部分重要逻辑。我们还需要定义一个函数来帮助我们在调用工具后更新图状态。

import re


def update_scratchpad(state: AgentState):
    """After a tool is invoked, we want to update
    the scratchpad so the agent is aware of its previous steps"""
    old = state.get("scratchpad")
    if old:
        txt = old[0].content
        last_line = txt.rsplit("\n", 1)[-1]
        step = int(re.match(r"\d+", last_line).group()) + 1
    else:
        txt = "Previous action observations:\n"
        step = 1
    txt += f"\n{step}. {state['observation']}"

    return {**state, "scratchpad": [SystemMessage(content=txt)]}

现在我们可以将所有内容组合成一个图

API 参考：RunnableLambda | END | START | StateGraph

from langchain_core.runnables import RunnableLambda

from langgraph.graph import END, START, StateGraph

graph_builder = StateGraph(AgentState)


graph_builder.add_node("agent", agent)
graph_builder.add_edge(START, "agent")

graph_builder.add_node("update_scratchpad", update_scratchpad)
graph_builder.add_edge("update_scratchpad", "agent")

tools = {
    "Click": click,
    "Type": type_text,
    "Scroll": scroll,
    "Wait": wait,
    "GoBack": go_back,
    "Google": to_google,
}


for node_name, tool in tools.items():
    graph_builder.add_node(
        node_name,
        # The lambda ensures the function's string output is mapped to the "observation"
        # key in the AgentState
        RunnableLambda(tool) | (lambda observation: {"observation": observation}),
    )
    # Always return to the agent (by means of the update-scratchpad node)
    graph_builder.add_edge(node_name, "update_scratchpad")


def select_tool(state: AgentState):
    # Any time the agent completes, this function
    # is called to route the output to a tool or
    # to the end user.
    action = state["prediction"]["action"]
    if action == "ANSWER":
        return END
    if action == "retry":
        return "agent"
    return action


graph_builder.add_conditional_edges("agent", select_tool)

graph = graph_builder.compile()

使用图

现在我们已经创建了整个智能体执行器，我们可以在一些问题上运行它！我们将从 "google.com" 启动我们的浏览器，然后让它控制其余部分。

下面是一个辅助函数，用于帮助将步骤打印到 notebook（并显示中间截图）。

from IPython import display
from playwright.async_api import async_playwright

browser = await async_playwright().start()
# We will set headless=False so we can watch the agent navigate the web.
browser = await browser.chromium.launch(headless=False, args=None)
page = await browser.new_page()
_ = await page.goto("https://www.google.com")


async def call_agent(question: str, page, max_steps: int = 150):
    event_stream = graph.astream(
        {
            "page": page,
            "input": question,
            "scratchpad": [],
        },
        {
            "recursion_limit": max_steps,
        },
    )
    final_answer = None
    steps = []
    async for event in event_stream:
        # We'll display an event stream here
        if "agent" not in event:
            continue
        pred = event["agent"].get("prediction") or {}
        action = pred.get("action")
        action_input = pred.get("args")
        display.clear_output(wait=False)
        steps.append(f"{len(steps) + 1}. {action}: {action_input}")
        print("\n".join(steps))
        display.display(display.Image(base64.b64decode(event["agent"]["img"])))
        if "ANSWER" in action:
            final_answer = action_input[0]
            break
    return final_answer


res = await call_agent("Could you explain the WebVoyager paper (on arxiv)?", page)
print(f"Final response: {res}")

1. Type: ['7', 'WebVoyager paper arXiv']
2. Click: ['32']
3. Click: ['3']
4. ANSWER;: ['The "WebVoyager" paper discusses the development of an end-to-end web agent that leverages large multimodal models. The abstract highlights the importance of such agents in automating complex tasks on the web, which remains a challenging domain due to the heterogeneity in structure and the semantic gap between humans and machines. The paper proposes a solution that combines neural symbolic models and multimodal web environments, aiming to advance the capabilities of these agents to perform web browsing tasks effectively. Further details would require a more in-depth analysis of the paper\'s content beyond the abstract.']

Final response: The "WebVoyager" paper discusses the development of an end-to-end web agent that leverages large multimodal models. The abstract highlights the importance of such agents in automating complex tasks on the web, which remains a challenging domain due to the heterogeneity in structure and the semantic gap between humans and machines. The paper proposes a solution that combines neural symbolic models and multimodal web environments, aiming to advance the capabilities of these agents to perform web browsing tasks effectively. Further details would require a more in-depth analysis of the paper's content beyond the abstract.


res = await call_agent(
    "Please explain the today's XKCD comic for me. Why is it funny?", page
)
print(f"Final response: {res}")

1. retry: Could not parse LLM Output: I'm sorry, but the image provided does not contain an XKCD comic. The image shows a page from a scientific paper titled "WebVoyager 2: Building an End-to-End Web Agent with Large Multimodal Models." If you provide the XKCD comic you're referring to, I'd be happy to explain the humor in it.
2. retry: Could not parse LLM Output: I'm sorry, but I cannot assist with that request.
3. Google: None
4. Type: ['6', 'xkcd.com']
5. Click: ['25']
6. ANSWER;: ['The XKCD comic titled "Relationship Advice" pokes fun at the sometimes exaggerated way people talk about the challenges of relationships. It starts with one character stating that relationships require constant work and are like a job, which is a common sentiment. However, the other character takes this comparison to an extreme, calling it a "grueling ordeal" and a "crushing burden," which humorously exaggerates the difficulties of maintaining a relationship. The punchline comes when, after this escalation, the second character insists they\'re fine and that it\'s all normal, which satirizes how people might downplay their struggles to appear in control or deny the extent of their challenges. The humor lies in the hyperbole and the relatable nature of discussing relationship difficulties, as well as the contrast between the characters\' statements and the insistence that everything is okay.']

Final response: The XKCD comic titled "Relationship Advice" pokes fun at the sometimes exaggerated way people talk about the challenges of relationships. It starts with one character stating that relationships require constant work and are like a job, which is a common sentiment. However, the other character takes this comparison to an extreme, calling it a "grueling ordeal" and a "crushing burden," which humorously exaggerates the difficulties of maintaining a relationship. The punchline comes when, after this escalation, the second character insists they're fine and that it's all normal, which satirizes how people might downplay their struggles to appear in control or deny the extent of their challenges. The humor lies in the hyperbole and the relatable nature of discussing relationship difficulties, as well as the contrast between the characters' statements and the insistence that everything is okay.


res = await call_agent("What are the latest blog posts from langchain?", page)
print(f"Final response: {res}")

1. Google: None
2. Type: ['6', 'latest blog posts from langchain']
3. Click: ['27']
4. Click: ['14']
5. Click: ['0']
6. retry: Could not parse LLM Output: Thought: The latest blog posts from Langchain are displayed on the right side of the screen with titles and reading time. I will provide the titles of the featured blog posts as seen on the screen.

Action: ANSWER; The latest blog posts from Langchain are:
1. OpenGPTs - 7 min read
2. LangGraph: Multi-Agent Workflows - 6 min read
3. LangGraph - 7 min read
4. LangChain v0.1.0 - 10 min read
7. ANSWER;: ['The latest blog posts from Langchain are "OpenGPTs," "LangGraph: Multi-Agent Workflows," and "LangGraph."']

Final response: The latest blog posts from Langchain are "OpenGPTs," "LangGraph: Multi-Agent Workflows," and "LangGraph."


res = await call_agent(
    "Could you check google maps to see when i should leave to get to SFO by 7 o'clock? starting from SF downtown.",
    page,
)
print(f"Final response: {res}")

1. Google: None
2. Type: ['6', 'Google Maps']
3. Click: ['0']
4. Click: ['0']
5. Wait: None
6. Click: ['22']
7. Click: ['0']
8. Click: ['2']
9. Type: ['0', 'San Francisco downtown to SFO']
10. Click: ['1']
11. Click: ['2']
12. Type: ['8', 'San Francisco International Airport SFO']
13. Click: ['14']
14. Click: ['28']
15. Scroll: ['WINDOW', 'up']
16. Scroll: ['WINDOW', 'up']
17. Click: ['10']
18. Click: ['28']
19. ANSWER;: ['To arrive at San Francisco International Airport (SFO) by 7:00 AM starting from downtown San Francisco, you should leave by 6:46 AM according to the current Google Maps information, which estimates a 44-minute travel time.']

Final response: To arrive at San Francisco International Airport (SFO) by 7:00 AM starting from downtown San Francisco, you should leave by 6:46 AM according to the current Google Maps information, which estimates a 44-minute travel time.

评论
