迭代提示

概述

LangGraph Studio 支持两种修改图中提示的方法:直接节点编辑和 LangSmith Playground 界面。

直接节点编辑

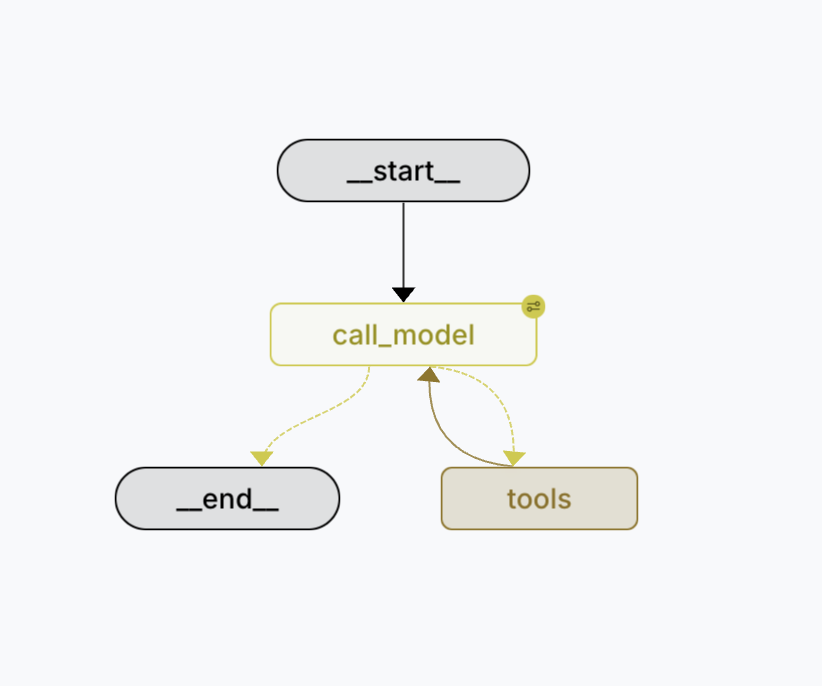

Studio 允许您直接从图界面编辑单个节点中使用的提示。

先决条件

图配置

定义您的配置,使用 langgraph_nodeslanggraph_type 键指定提示字段及其关联的节点。

配置参考

langgraph_nodes
  • 描述:指定配置字段与图中的哪些节点关联。
  • 值类型:字符串数组,其中每个字符串是图中节点的名称。
  • 使用上下文:包含在 Pydantic 模型的 json_schema_extra 字典中,或 dataclasses 的 metadata["json_schema_extra"] 字典中。
  • 示例:
    system_prompt: str = Field(
        default="You are a helpful AI assistant.",
        json_schema_extra={"langgraph_nodes": ["call_model", "other_node"]},
    )

langgraph_type
  • 描述:指定配置字段的类型,该类型决定了它在用户界面中的处理方式。
  • 值类型:字符串
  • 支持的值:
  • "prompt":表示该字段包含应在用户界面中特殊处理的提示文本。
  • 使用上下文:包含在 Pydantic 模型的 json_schema_extra 字典中,或 dataclasses 的 metadata["json_schema_extra"] 字典中。
  • 示例:
    system_prompt: str = Field(
        default="You are a helpful AI assistant.",
        json_schema_extra={
            "langgraph_nodes": ["call_model"],
            "langgraph_type": "prompt",
        },
    )


配置示例

## Using Pydantic
from pydantic import BaseModel, Field
from typing import Annotated, Literal

class Configuration(BaseModel):
    """The configuration for the agent."""

    system_prompt: str = Field(
        default="You are a helpful AI assistant.",
        description="The system prompt to use for the agent's interactions. "
        "This prompt sets the context and behavior for the agent.",
        json_schema_extra={
            "langgraph_nodes": ["call_model"],
            "langgraph_type": "prompt",
        },
    )

    model: Annotated[
        Literal[
            "anthropic/claude-3-7-sonnet-latest",
            "anthropic/claude-3-5-haiku-latest",
            "openai/o1",
            "openai/gpt-4o-mini",
            "openai/o1-mini",
            "openai/o3-mini",
        ],
        {"__template_metadata__": {"kind": "llm"}},
    ] = Field(
        default="openai/gpt-4o-mini",
        description="The name of the language model to use for the agent's main interactions. "
        "Should be in the form: provider/model-name.",
        json_schema_extra={"langgraph_nodes": ["call_model"]},
    )

## Using Dataclasses
from dataclasses import dataclass, field

@dataclass(kw_only=True)
class Configuration:
    """The configuration for the agent."""

    system_prompt: str = field(
        default="You are a helpful AI assistant.",
        metadata={
            "description": "The system prompt to use for the agent's interactions. "
            "This prompt sets the context and behavior for the agent.",
            "json_schema_extra": {"langgraph_nodes": ["call_model"]},
        },
    )

    model: Annotated[str, {"__template_metadata__": {"kind": "llm"}}] = field(
        default="anthropic/claude-3-5-sonnet-20240620",
        metadata={
            "description": "The name of the language model to use for the agent's main interactions. "
            "Should be in the form: provider/model-name.",
            "json_schema_extra": {"langgraph_nodes": ["call_model"]},
        },
    )

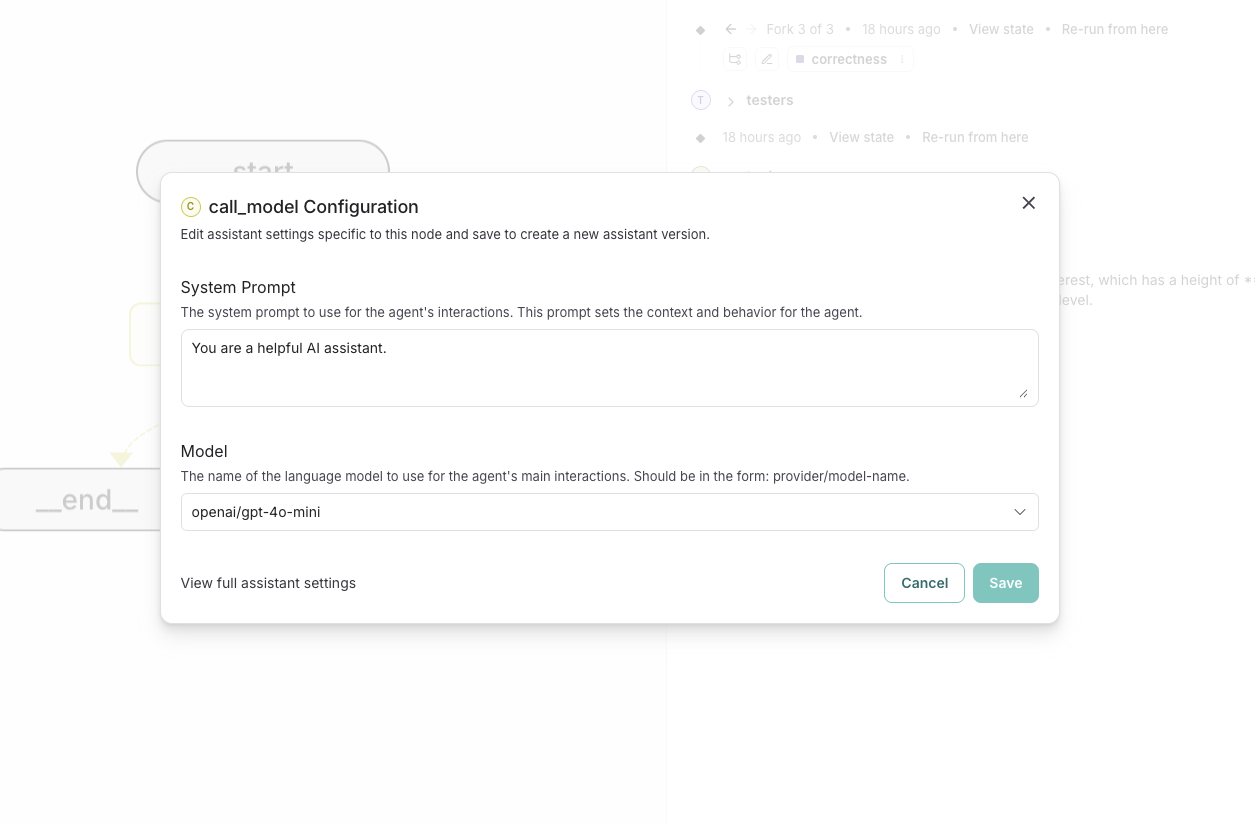

在用户界面中编辑提示

  1. 找到具有关联配置字段的节点上的齿轮图标
  2. 点击打开配置模态框
  3. 编辑值
  4. 保存以更新当前助手版本或创建新版本

LangSmith Playground

LangSmith Playground 界面允许测试单个 LLM 调用,而无需运行整个图。

  1. 选择一个线程
  2. 在节点上点击“查看 LLM 运行”。这会列出节点内部进行的所有 LLM 调用(如果有)。
  3. 选择一个 LLM 运行以在 Playground 中打开
  4. 修改提示并测试不同的模型和工具设置
  5. 将更新的提示复制回您的图

如需高级 Playground 功能,请点击右上角的展开按钮。
