启用人工干预¶
要在代理或工作流中审查、编辑和批准工具调用,请使用中断来暂停图并等待人工输入。中断使用 LangGraph 的持久化层(该层保存图状态),以无限期地暂停图执行,直到您恢复为止。
信息
有关人在回路工作流的更多信息,请参阅人在回路概念指南。
使用 interrupt
暂停¶
动态中断(也称为动态断点)是根据图的当前状态触发的。您可以通过在适当位置调用interrupt
函数来设置动态中断。图将暂停,允许人工干预,然后用其输入恢复图。这对于批准、编辑或收集附加上下文等任务非常有用。
注意
从 v1.0 开始,interrupt
是暂停图的推荐方式。NodeInterrupt
已弃用,并将在 v2.0 中移除。
要在图中使用 interrupt
,您需要
- 指定一个检查点器,用于在每一步之后保存图状态。
- 在适当位置调用
interrupt()
。有关示例,请参阅常见模式部分。 - 使用线程 ID 运行图,直到触发
interrupt
。 - 使用
invoke
/ainvoke
/stream
/astream
恢复执行(参见Command
原语)。
from langgraph.types import interrupt, Command
def human_node(state: State):
value = interrupt( # (1)!
{
"text_to_revise": state["some_text"] # (2)!
}
)
return {
"some_text": value # (3)!
}
graph = graph_builder.compile(checkpointer=checkpointer) # (4)!
# Run the graph until the interrupt is hit.
config = {"configurable": {"thread_id": "some_id"}}
result = graph.invoke({"some_text": "original text"}, config=config) # (5)!
print(result['__interrupt__']) # (6)!
# > [
# > Interrupt(
# > value={'text_to_revise': 'original text'},
# > resumable=True,
# > ns=['human_node:6ce9e64f-edef-fe5d-f7dc-511fa9526960']
# > )
# > ]
print(graph.invoke(Command(resume="Edited text"), config=config)) # (7)!
# > {'some_text': 'Edited text'}
interrupt(...)
会在human_node
暂停执行,将给定的有效负载呈现给人工。- 任何可 JSON 序列化的值都可以传递给
interrupt
函数。这里是一个包含要修改文本的字典。 - 一旦恢复,
interrupt(...)
的返回值是人工提供的输入,用于更新状态。 - 需要检查点器来持久化图状态。在生产环境中,这应该是持久的(例如,由数据库支持)。
- 图表以某些初始状态被调用。
- 当图命中中断时,它会返回一个带有有效负载和元数据的
Interrupt
对象。 - 图表通过
Command(resume=...)
恢复,注入人工输入并继续执行。
扩展示例:使用 interrupt
from typing import TypedDict
import uuid
from langgraph.checkpoint.memory import InMemorySaver
from langgraph.constants import START
from langgraph.graph import StateGraph
from langgraph.types import interrupt, Command
class State(TypedDict):
some_text: str
def human_node(state: State):
value = interrupt( # (1)!
{
"text_to_revise": state["some_text"] # (2)!
}
)
return {
"some_text": value # (3)!
}
# Build the graph
graph_builder = StateGraph(State)
graph_builder.add_node("human_node", human_node)
graph_builder.add_edge(START, "human_node")
checkpointer = InMemorySaver() # (4)!
graph = graph_builder.compile(checkpointer=checkpointer)
# Pass a thread ID to the graph to run it.
config = {"configurable": {"thread_id": uuid.uuid4()}}
# Run the graph until the interrupt is hit.
result = graph.invoke({"some_text": "original text"}, config=config) # (5)!
print(result['__interrupt__']) # (6)!
# > [
# > Interrupt(
# > value={'text_to_revise': 'original text'},
# > resumable=True,
# > ns=['human_node:6ce9e64f-edef-fe5d-f7dc-511fa9526960']
# > )
# > ]
print(graph.invoke(Command(resume="Edited text"), config=config)) # (7)!
# > {'some_text': 'Edited text'}
interrupt(...)
会在human_node
暂停执行,将给定的有效负载呈现给人工。- 任何可 JSON 序列化的值都可以传递给
interrupt
函数。这里是一个包含要修改文本的字典。 - 一旦恢复,
interrupt(...)
的返回值是人工提供的输入,用于更新状态。 - 需要检查点器来持久化图状态。在生产环境中,这应该是持久的(例如,由数据库支持)。
- 图表以某些初始状态被调用。
- 当图命中中断时,它会返回一个带有有效负载和元数据的
Interrupt
对象。 - 图表通过
Command(resume=...)
恢复,注入人工输入并继续执行。
0.4.0 版本新增
__interrupt__
是一个特殊键,当图被中断时,在运行图时将返回此键。在 0.4.0 版本中已添加了对 invoke
和 ainvoke
中 __interrupt__
的支持。如果您使用的是旧版本,则只有在使用 stream
或 astream
时才能在结果中看到 __interrupt__
。您还可以使用 graph.get_state(thread_id)
获取中断值。
警告
中断在开发者体验方面类似于 Python 的 input()
函数,但它们不会自动从中断点恢复执行。相反,它们会重新运行使用了中断的整个节点。因此,中断通常最好放在节点的开头或专用节点中。
使用 Command
原语恢复¶
当在图中使用 interrupt
函数时,执行会在该点暂停并等待用户输入。
要恢复执行,请使用Command
原语,它可以通过 invoke
、ainvoke
、stream
或 astream
方法提供。图将从最初调用 interrupt(...)
的节点的开头恢复执行。这次,interrupt
函数将返回 Command(resume=value)
中提供的值,而不是再次暂停。从节点开头到 interrupt
的所有代码都将重新执行。
# Resume graph execution by providing the user's input.
graph.invoke(Command(resume={"age": "25"}), thread_config)

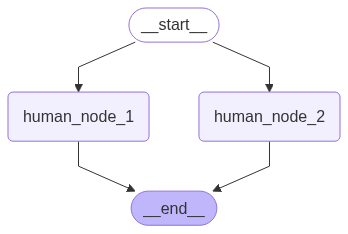

一次调用恢复多个中断¶
如果任务队列中有多个中断,您可以使用带有中断 ID 字典映射的 Command.resume
,通过单次 invoke
/ stream
调用来恢复。
例如,一旦您的图被中断(理论上多次)并停滞
resume_map = {
i.interrupt_id: f"human input for prompt {i.value}"
for i in parent.get_state(thread_config).interrupts
}
parent_graph.invoke(Command(resume=resume_map), config=thread_config)
常见模式¶
下面我们展示了可以使用 interrupt
和 Command
实现的不同设计模式。
批准或拒绝¶
在关键步骤(例如 API 调用)之前暂停图,以审查并批准操作。如果操作被拒绝,您可以阻止图执行该步骤,并可能采取备用操作。
from typing import Literal
from langgraph.types import interrupt, Command
def human_approval(state: State) -> Command[Literal["some_node", "another_node"]]:
is_approved = interrupt(
{
"question": "Is this correct?",
# Surface the output that should be
# reviewed and approved by the human.
"llm_output": state["llm_output"]
}
)
if is_approved:
return Command(goto="some_node")
else:
return Command(goto="another_node")
# Add the node to the graph in an appropriate location
# and connect it to the relevant nodes.
graph_builder.add_node("human_approval", human_approval)
graph = graph_builder.compile(checkpointer=checkpointer)
# After running the graph and hitting the interrupt, the graph will pause.
# Resume it with either an approval or rejection.
thread_config = {"configurable": {"thread_id": "some_id"}}
graph.invoke(Command(resume=True), config=thread_config)
扩展示例:使用中断进行批准或拒绝
from typing import Literal, TypedDict
import uuid
from langgraph.constants import START, END
from langgraph.graph import StateGraph
from langgraph.types import interrupt, Command
from langgraph.checkpoint.memory import MemorySaver
# Define the shared graph state
class State(TypedDict):
llm_output: str
decision: str
# Simulate an LLM output node
def generate_llm_output(state: State) -> State:
return {"llm_output": "This is the generated output."}
# Human approval node
def human_approval(state: State) -> Command[Literal["approved_path", "rejected_path"]]:
decision = interrupt({
"question": "Do you approve the following output?",
"llm_output": state["llm_output"]
})
if decision == "approve":
return Command(goto="approved_path", update={"decision": "approved"})
else:
return Command(goto="rejected_path", update={"decision": "rejected"})
# Next steps after approval
def approved_node(state: State) -> State:
print("✅ Approved path taken.")
return state
# Alternative path after rejection
def rejected_node(state: State) -> State:
print("❌ Rejected path taken.")
return state
# Build the graph
builder = StateGraph(State)
builder.add_node("generate_llm_output", generate_llm_output)
builder.add_node("human_approval", human_approval)
builder.add_node("approved_path", approved_node)
builder.add_node("rejected_path", rejected_node)
builder.set_entry_point("generate_llm_output")
builder.add_edge("generate_llm_output", "human_approval")
builder.add_edge("approved_path", END)
builder.add_edge("rejected_path", END)
checkpointer = MemorySaver()
graph = builder.compile(checkpointer=checkpointer)
# Run until interrupt
config = {"configurable": {"thread_id": uuid.uuid4()}}
result = graph.invoke({}, config=config)
print(result["__interrupt__"])
# Output:
# Interrupt(value={'question': 'Do you approve the following output?', 'llm_output': 'This is the generated output.'}, ...)
# Simulate resuming with human input
# To test rejection, replace resume="approve" with resume="reject"
final_result = graph.invoke(Command(resume="approve"), config=config)
print(final_result)
审查并编辑状态¶
API 参考:interrupt
from langgraph.types import interrupt
def human_editing(state: State):
...
result = interrupt(
# Interrupt information to surface to the client.
# Can be any JSON serializable value.
{
"task": "Review the output from the LLM and make any necessary edits.",
"llm_generated_summary": state["llm_generated_summary"]
}
)
# Update the state with the edited text
return {
"llm_generated_summary": result["edited_text"]
}
# Add the node to the graph in an appropriate location
# and connect it to the relevant nodes.
graph_builder.add_node("human_editing", human_editing)
graph = graph_builder.compile(checkpointer=checkpointer)
...
# After running the graph and hitting the interrupt, the graph will pause.
# Resume it with the edited text.
thread_config = {"configurable": {"thread_id": "some_id"}}
graph.invoke(
Command(resume={"edited_text": "The edited text"}),
config=thread_config
)
扩展示例:使用中断编辑状态
from typing import TypedDict
import uuid
from langgraph.constants import START, END
from langgraph.graph import StateGraph
from langgraph.types import interrupt, Command
from langgraph.checkpoint.memory import MemorySaver
# Define the graph state
class State(TypedDict):
summary: str
# Simulate an LLM summary generation
def generate_summary(state: State) -> State:
return {
"summary": "The cat sat on the mat and looked at the stars."
}
# Human editing node
def human_review_edit(state: State) -> State:
result = interrupt({
"task": "Please review and edit the generated summary if necessary.",
"generated_summary": state["summary"]
})
return {
"summary": result["edited_summary"]
}
# Simulate downstream use of the edited summary
def downstream_use(state: State) -> State:
print(f"✅ Using edited summary: {state['summary']}")
return state
# Build the graph
builder = StateGraph(State)
builder.add_node("generate_summary", generate_summary)
builder.add_node("human_review_edit", human_review_edit)
builder.add_node("downstream_use", downstream_use)
builder.set_entry_point("generate_summary")
builder.add_edge("generate_summary", "human_review_edit")
builder.add_edge("human_review_edit", "downstream_use")
builder.add_edge("downstream_use", END)
# Set up in-memory checkpointing for interrupt support
checkpointer = MemorySaver()
graph = builder.compile(checkpointer=checkpointer)
# Invoke the graph until it hits the interrupt
config = {"configurable": {"thread_id": uuid.uuid4()}}
result = graph.invoke({}, config=config)
# Output interrupt payload
print(result["__interrupt__"])
# Example output:
# Interrupt(
# value={
# 'task': 'Please review and edit the generated summary if necessary.',
# 'generated_summary': 'The cat sat on the mat and looked at the stars.'
# },
# resumable=True,
# ...
# )
# Resume the graph with human-edited input
edited_summary = "The cat lay on the rug, gazing peacefully at the night sky."
resumed_result = graph.invoke(
Command(resume={"edited_summary": edited_summary}),
config=config
)
print(resumed_result)
审查工具调用¶
要为工具添加人工审批步骤
- 在工具中使用
interrupt()
来暂停执行。 - 使用
Command(resume=...)
恢复,以根据人工输入继续。
API 参考:InMemorySaver | interrupt | create_react_agent
from langgraph.checkpoint.memory import InMemorySaver
from langgraph.types import interrupt
from langgraph.prebuilt import create_react_agent
# An example of a sensitive tool that requires human review / approval
def book_hotel(hotel_name: str):
"""Book a hotel"""
response = interrupt( # (1)!
f"Trying to call `book_hotel` with args {{'hotel_name': {hotel_name}}}. "
"Please approve or suggest edits."
)
if response["type"] == "accept":
pass
elif response["type"] == "edit":
hotel_name = response["args"]["hotel_name"]
else:
raise ValueError(f"Unknown response type: {response['type']}")
return f"Successfully booked a stay at {hotel_name}."
checkpointer = InMemorySaver() # (2)!
agent = create_react_agent(
model="anthropic:claude-3-5-sonnet-latest",
tools=[book_hotel],
checkpointer=checkpointer, # (3)!
)
interrupt
函数在特定节点暂停代理图。在这种情况下,我们在工具函数的开头调用interrupt()
,这会在执行工具的节点处暂停图。interrupt()
中的信息(例如,工具调用)可以呈现给人工,并且图可以根据用户输入(工具调用批准、编辑或反馈)恢复。InMemorySaver
用于在工具调用循环的每一步中存储代理状态。这实现了短期记忆和人在回路能力。在此示例中,我们使用InMemorySaver
将代理状态存储在内存中。在生产应用程序中,代理状态将存储在数据库中。- 使用
checkpointer
初始化代理。
使用 stream()
方法运行代理,传入 config
对象以指定线程 ID。这允许代理在未来的调用中恢复相同的对话。
config = {
"configurable": {
"thread_id": "1"
}
}
for chunk in agent.stream(
{"messages": [{"role": "user", "content": "book a stay at McKittrick hotel"}]},
config
):
print(chunk)
print("\n")
您应该会看到代理运行直到到达
interrupt()
调用,此时它会暂停并等待人工输入。
使用 Command(resume=...)
恢复代理,以根据人工输入继续。
API 参考:Command
from langgraph.types import Command
for chunk in agent.stream(
Command(resume={"type": "accept"}), # (1)!
# Command(resume={"type": "edit", "args": {"hotel_name": "McKittrick Hotel"}}),
config
):
print(chunk)
print("\n")
interrupt
函数与Command
对象结合使用,以人工提供的值恢复图。
向任何工具添加中断¶
您可以创建一个包装器来向任何工具添加中断。以下示例提供了与 Agent Inbox UI 和 Agent Chat UI 兼容的参考实现。
from typing import Callable
from langchain_core.tools import BaseTool, tool as create_tool
from langchain_core.runnables import RunnableConfig
from langgraph.types import interrupt
from langgraph.prebuilt.interrupt import HumanInterruptConfig, HumanInterrupt
def add_human_in_the_loop(
tool: Callable | BaseTool,
*,
interrupt_config: HumanInterruptConfig = None,
) -> BaseTool:
"""Wrap a tool to support human-in-the-loop review."""
if not isinstance(tool, BaseTool):
tool = create_tool(tool)
if interrupt_config is None:
interrupt_config = {
"allow_accept": True,
"allow_edit": True,
"allow_respond": True,
}
@create_tool( # (1)!
tool.name,
description=tool.description,
args_schema=tool.args_schema
)
def call_tool_with_interrupt(config: RunnableConfig, **tool_input):
request: HumanInterrupt = {
"action_request": {
"action": tool.name,
"args": tool_input
},
"config": interrupt_config,
"description": "Please review the tool call"
}
response = interrupt([request])[0] # (2)!
# approve the tool call
if response["type"] == "accept":
tool_response = tool.invoke(tool_input, config)
# update tool call args
elif response["type"] == "edit":
tool_input = response["args"]["args"]
tool_response = tool.invoke(tool_input, config)
# respond to the LLM with user feedback
elif response["type"] == "response":
user_feedback = response["args"]
tool_response = user_feedback
else:
raise ValueError(f"Unsupported interrupt response type: {response['type']}")
return tool_response
return call_tool_with_interrupt
- 此包装器创建一个新工具,该工具在执行被包装的工具之前调用
interrupt()
。 interrupt()
使用 Agent Inbox UI 期望的特殊输入和输出格式- 一个
HumanInterrupt
对象列表被发送到AgentInbox
,用于向最终用户渲染中断信息 - 恢复值由
AgentInbox
作为列表提供(即Command(resume=[...])
)
- 一个
您可以使用 add_human_in_the_loop
包装器向任何工具添加 interrupt()
,而无需将其添加在工具内部
API 参考:InMemorySaver | create_react_agent
from langgraph.checkpoint.memory import InMemorySaver
from langgraph.prebuilt import create_react_agent
checkpointer = InMemorySaver()
def book_hotel(hotel_name: str):
"""Book a hotel"""
return f"Successfully booked a stay at {hotel_name}."
agent = create_react_agent(
model="anthropic:claude-3-5-sonnet-latest",
tools=[
add_human_in_the_loop(book_hotel), # (1)!
],
checkpointer=checkpointer,
)
config = {"configurable": {"thread_id": "1"}}
# Run the agent
for chunk in agent.stream(
{"messages": [{"role": "user", "content": "book a stay at McKittrick hotel"}]},
config
):
print(chunk)
print("\n")
add_human_in_the_loop
包装器用于向工具添加interrupt()
。这允许代理暂停执行并等待人工输入,然后继续进行工具调用。
您应该会看到代理运行直到到达
interrupt()
调用,此时它会暂停并等待人工输入。
使用 Command(resume=...)
恢复代理,以根据人工输入继续。
API 参考:Command
from langgraph.types import Command
for chunk in agent.stream(
Command(resume=[{"type": "accept"}]),
# Command(resume=[{"type": "edit", "args": {"args": {"hotel_name": "McKittrick Hotel"}}}]),
config
):
print(chunk)
print("\n")
验证人工输入¶
如果您需要在图本身中(而不是在客户端)验证人工提供的输入,可以通过在单个节点中使用多个中断调用来实现。
API 参考:interrupt
from langgraph.types import interrupt
def human_node(state: State):
"""Human node with validation."""
question = "What is your age?"
while True:
answer = interrupt(question)
# Validate answer, if the answer isn't valid ask for input again.
if not isinstance(answer, int) or answer < 0:
question = f"'{answer} is not a valid age. What is your age?"
answer = None
continue
else:
# If the answer is valid, we can proceed.
break
print(f"The human in the loop is {answer} years old.")
return {
"age": answer
}
扩展示例:验证用户输入
from typing import TypedDict
import uuid
from langgraph.constants import START, END
from langgraph.graph import StateGraph
from langgraph.types import interrupt, Command
from langgraph.checkpoint.memory import MemorySaver
# Define graph state
class State(TypedDict):
age: int
# Node that asks for human input and validates it
def get_valid_age(state: State) -> State:
prompt = "Please enter your age (must be a non-negative integer)."
while True:
user_input = interrupt(prompt)
# Validate the input
try:
age = int(user_input)
if age < 0:
raise ValueError("Age must be non-negative.")
break # Valid input received
except (ValueError, TypeError):
prompt = f"'{user_input}' is not valid. Please enter a non-negative integer for age."
return {"age": age}
# Node that uses the valid input
def report_age(state: State) -> State:
print(f"✅ Human is {state['age']} years old.")
return state
# Build the graph
builder = StateGraph(State)
builder.add_node("get_valid_age", get_valid_age)
builder.add_node("report_age", report_age)
builder.set_entry_point("get_valid_age")
builder.add_edge("get_valid_age", "report_age")
builder.add_edge("report_age", END)
# Create the graph with a memory checkpointer
checkpointer = MemorySaver()
graph = builder.compile(checkpointer=checkpointer)
# Run the graph until the first interrupt
config = {"configurable": {"thread_id": uuid.uuid4()}}
result = graph.invoke({}, config=config)
print(result["__interrupt__"]) # First prompt: "Please enter your age..."
# Simulate an invalid input (e.g., string instead of integer)
result = graph.invoke(Command(resume="not a number"), config=config)
print(result["__interrupt__"]) # Follow-up prompt with validation message
# Simulate a second invalid input (e.g., negative number)
result = graph.invoke(Command(resume="-10"), config=config)
print(result["__interrupt__"]) # Another retry
# Provide valid input
final_result = graph.invoke(Command(resume="25"), config=config)
print(final_result) # Should include the valid age
使用中断进行调试¶
要调试和测试图,请使用静态中断(也称为静态断点)来逐个节点地步进图执行,或在特定节点暂停图执行。静态中断在节点执行之前或之后的定义点触发。您可以通过在编译时或运行时指定 interrupt_before
和 interrupt_after
来设置静态中断。
警告
不建议将静态中断用于人在回路工作流。请改用动态中断。
graph = graph_builder.compile( # (1)!
interrupt_before=["node_a"], # (2)!
interrupt_after=["node_b", "node_c"], # (3)!
checkpointer=checkpointer, # (4)!
)
config = {
"configurable": {
"thread_id": "some_thread"
}
}
# Run the graph until the breakpoint
graph.invoke(inputs, config=thread_config) # (5)!
# Resume the graph
graph.invoke(None, config=thread_config) # (6)!
- 断点是在
compile
时设置的。 interrupt_before
指定了在节点执行前应该暂停执行的节点。interrupt_after
指定了在节点执行后应该暂停执行的节点。- 需要检查点器才能启用断点。
- 图表运行直到遇到第一个断点。
- 通过为输入传入
None
来恢复图表。这将使图表运行直到遇到下一个断点。
graph.invoke( # (1)!
inputs,
interrupt_before=["node_a"], # (2)!
interrupt_after=["node_b", "node_c"] # (3)!
config={
"configurable": {"thread_id": "some_thread"}
},
)
config = {
"configurable": {
"thread_id": "some_thread"
}
}
# Run the graph until the breakpoint
graph.invoke(inputs, config=config) # (4)!
# Resume the graph
graph.invoke(None, config=config) # (5)!
graph.invoke
在调用时带有interrupt_before
和interrupt_after
参数。这是一个运行时配置,可以为每次调用进行更改。interrupt_before
指定了在节点执行前应该暂停执行的节点。interrupt_after
指定了在节点执行后应该暂停执行的节点。- 图表运行直到遇到第一个断点。
- 通过为输入传入
None
来恢复图表。这将使图表运行直到遇到下一个断点。
注意
您不能在运行时为子图设置静态断点。如果存在子图,则必须在编译时设置断点。
设置静态断点
from IPython.display import Image, display
from typing_extensions import TypedDict
from langgraph.checkpoint.memory import InMemorySaver
from langgraph.graph import StateGraph, START, END
class State(TypedDict):
input: str
def step_1(state):
print("---Step 1---")
pass
def step_2(state):
print("---Step 2---")
pass
def step_3(state):
print("---Step 3---")
pass
builder = StateGraph(State)
builder.add_node("step_1", step_1)
builder.add_node("step_2", step_2)
builder.add_node("step_3", step_3)
builder.add_edge(START, "step_1")
builder.add_edge("step_1", "step_2")
builder.add_edge("step_2", "step_3")
builder.add_edge("step_3", END)
# Set up a checkpointer
checkpointer = InMemorySaver() # (1)!
graph = builder.compile(
checkpointer=checkpointer, # (2)!
interrupt_before=["step_3"] # (3)!
)
# View
display(Image(graph.get_graph().draw_mermaid_png()))
# Input
initial_input = {"input": "hello world"}
# Thread
thread = {"configurable": {"thread_id": "1"}}
# Run the graph until the first interruption
for event in graph.stream(initial_input, thread, stream_mode="values"):
print(event)
# This will run until the breakpoint
# You can get the state of the graph at this point
print(graph.get_state(config))
# You can continue the graph execution by passing in `None` for the input
for event in graph.stream(None, thread, stream_mode="values"):
print(event)
在 LangGraph Studio 中使用静态中断¶
您可以使用LangGraph Studio 调试您的图。您可以在 UI 中设置静态断点,然后运行图。您还可以使用 UI 在执行的任何点检查图状态。
LangGraph Studio 对使用 langgraph dev
的本地部署应用程序免费提供。
注意事项¶
在使用人在回路时,需要注意一些事项。
与具有副作用的代码一起使用¶
将具有副作用的代码(例如 API 调用)放在 interrupt
之后或单独的节点中,以避免重复,因为这些代码在每次节点恢复时都会重新触发。
与作为函数调用的子图一起使用¶
当将子图作为函数调用时,父图将从触发 interrupt
的子图调用所在节点的开头恢复执行。类似地,子图将从调用 interrupt()
函数的节点的开头恢复。
def node_in_parent_graph(state: State):
some_code() # <-- This will re-execute when the subgraph is resumed.
# Invoke a subgraph as a function.
# The subgraph contains an `interrupt` call.
subgraph_result = subgraph.invoke(some_input)
...
扩展示例:父图和子图执行流程
假设我们有一个包含 3 个节点的父图
父图:node_1
→ node_2
(子图调用) → node_3
子图包含 3 个节点,其中第二个节点包含一个 interrupt
子图:sub_node_1
→ sub_node_2
(interrupt
) → sub_node_3
恢复图时,执行将按以下方式进行
- 跳过父图中的
node_1
(已执行,图状态已保存在快照中)。 - 从头开始重新执行父图中的
node_2
。 - 跳过子图中的
sub_node_1
(已执行,图状态已保存在快照中)。 - 从头开始重新执行子图中的
sub_node_2
。 - 继续执行
sub_node_3
和后续节点。
这里是简略的示例代码,您可以使用它来理解子图如何与中断一起工作。它会计算每个节点被进入的次数并打印计数。
import uuid
from typing import TypedDict
from langgraph.graph import StateGraph
from langgraph.constants import START
from langgraph.types import interrupt, Command
from langgraph.checkpoint.memory import MemorySaver
class State(TypedDict):
"""The graph state."""
state_counter: int
counter_node_in_subgraph = 0
def node_in_subgraph(state: State):
"""A node in the sub-graph."""
global counter_node_in_subgraph
counter_node_in_subgraph += 1 # This code will **NOT** run again!
print(f"Entered `node_in_subgraph` a total of {counter_node_in_subgraph} times")
counter_human_node = 0
def human_node(state: State):
global counter_human_node
counter_human_node += 1 # This code will run again!
print(f"Entered human_node in sub-graph a total of {counter_human_node} times")
answer = interrupt("what is your name?")
print(f"Got an answer of {answer}")
checkpointer = MemorySaver()
subgraph_builder = StateGraph(State)
subgraph_builder.add_node("some_node", node_in_subgraph)
subgraph_builder.add_node("human_node", human_node)
subgraph_builder.add_edge(START, "some_node")
subgraph_builder.add_edge("some_node", "human_node")
subgraph = subgraph_builder.compile(checkpointer=checkpointer)
counter_parent_node = 0
def parent_node(state: State):
"""This parent node will invoke the subgraph."""
global counter_parent_node
counter_parent_node += 1 # This code will run again on resuming!
print(f"Entered `parent_node` a total of {counter_parent_node} times")
# Please note that we're intentionally incrementing the state counter
# in the graph state as well to demonstrate that the subgraph update
# of the same key will not conflict with the parent graph (until
subgraph_state = subgraph.invoke(state)
return subgraph_state
builder = StateGraph(State)
builder.add_node("parent_node", parent_node)
builder.add_edge(START, "parent_node")
# A checkpointer must be enabled for interrupts to work!
checkpointer = MemorySaver()
graph = builder.compile(checkpointer=checkpointer)
config = {
"configurable": {
"thread_id": uuid.uuid4(),
}
}
for chunk in graph.stream({"state_counter": 1}, config):
print(chunk)
print('--- Resuming ---')
for chunk in graph.stream(Command(resume="35"), config):
print(chunk)
这将打印出
Entered `parent_node` a total of 1 times
Entered `node_in_subgraph` a total of 1 times
Entered human_node in sub-graph a total of 1 times
{'__interrupt__': (Interrupt(value='what is your name?', resumable=True, ns=['parent_node:4c3a0248-21f0-1287-eacf-3002bc304db4', 'human_node:2fe86d52-6f70-2a3f-6b2f-b1eededd6348'], when='during'),)}
--- Resuming ---
Entered `parent_node` a total of 2 times
Entered human_node in sub-graph a total of 2 times
Got an answer of 35
{'parent_node': {'state_counter': 1}}
使用多个中断¶
在单个节点中使用多个中断对于验证人工输入等模式可能很有用。但是,如果处理不当,在同一节点中使用多个中断可能会导致意外行为。
当一个节点包含多个中断调用时,LangGraph 会保留一个与执行该节点的任务相关的恢复值列表。每当执行恢复时,它都会从节点的开头开始。对于遇到的每个中断,LangGraph 会检查任务的恢复列表中是否存在匹配的值。匹配是严格基于索引的,因此节点内中断调用的顺序至关重要。
为避免问题,请避免在执行之间动态更改节点结构。这包括添加、删除或重新排序中断调用,因为此类更改可能导致索引不匹配。这些问题通常源于非传统模式,例如通过 Command(resume=..., update=SOME_STATE_MUTATION)
改变状态或依赖全局变量动态修改节点结构。
扩展示例:引入非确定性的不正确代码
import uuid
from typing import TypedDict, Optional
from langgraph.graph import StateGraph
from langgraph.constants import START
from langgraph.types import interrupt, Command
from langgraph.checkpoint.memory import MemorySaver
class State(TypedDict):
"""The graph state."""
age: Optional[str]
name: Optional[str]
def human_node(state: State):
if not state.get('name'):
name = interrupt("what is your name?")
else:
name = "N/A"
if not state.get('age'):
age = interrupt("what is your age?")
else:
age = "N/A"
print(f"Name: {name}. Age: {age}")
return {
"age": age,
"name": name,
}
builder = StateGraph(State)
builder.add_node("human_node", human_node)
builder.add_edge(START, "human_node")
# A checkpointer must be enabled for interrupts to work!
checkpointer = MemorySaver()
graph = builder.compile(checkpointer=checkpointer)
config = {
"configurable": {
"thread_id": uuid.uuid4(),
}
}
for chunk in graph.stream({"age": None, "name": None}, config):
print(chunk)
for chunk in graph.stream(Command(resume="John", update={"name": "foo"}), config):
print(chunk)
