多代理监督者¶

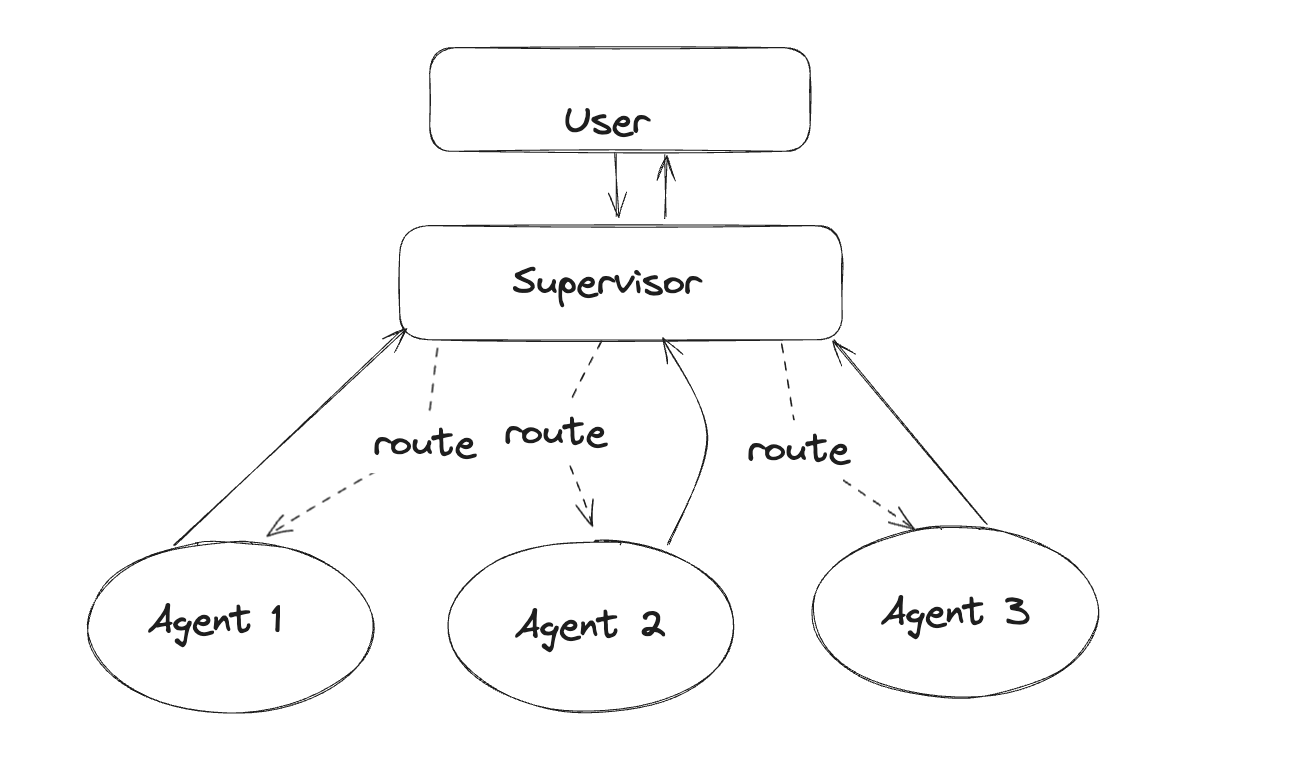

监督者 是一种多代理架构,其中专业化代理由一个中心监督代理协调。监督代理控制所有通信流和任务委托,根据当前上下文和任务要求决定调用哪个代理。
在本教程中,你将构建一个包含两个代理(一个研究代理和一个数学专家代理)的监督系统。学完本教程后,你将能够:
- 构建专业化的研究和数学代理
- 使用预构建的
langgraph-supervisor
为它们构建一个监督者 - 从头开始构建一个监督者
- 实现高级任务委托
设置¶
首先,让我们安装所需的包并设置我们的 API 密钥
%%capture --no-stderr
%pip install -U langgraph langgraph-supervisor langchain-tavily "langchain[openai]"
import getpass
import os
def _set_if_undefined(var: str):
if not os.environ.get(var):
os.environ[var] = getpass.getpass(f"Please provide your {var}")
_set_if_undefined("OPENAI_API_KEY")
_set_if_undefined("TAVILY_API_KEY")
提示
注册 LangSmith 以快速发现问题并提高 LangGraph 项目的性能。LangSmith 允许你使用追踪数据来调试、测试和监控你使用 LangGraph 构建的 LLM 应用程序。
1. 创建工作代理¶
首先,让我们创建我们的专业化工作代理——研究代理和数学代理。
- 研究代理将使用 Tavily API 访问网络搜索工具
- 数学代理将访问简单的数学工具(
add
,multiply
,divide
)
研究代理¶
对于网络搜索,我们将使用 langchain-tavily
中的 TavilySearch
工具
API 参考:TavilySearch
from langchain_tavily import TavilySearch
web_search = TavilySearch(max_results=3)
web_search_results = web_search.invoke("who is the mayor of NYC?")
print(web_search_results["results"][0]["content"])
输出
Find events, attractions, deals, and more at nyctourism.com Skip Main Navigation Menu The Official Website of the City of New York Text Size Powered by Translate SearchSearch Primary Navigation The official website of NYC Home NYC Resources NYC311 Office of the Mayor Events Connect Jobs Search Office of the Mayor | Mayor's Bio | City of New York Secondary Navigation MayorBiographyNewsOfficials Eric L. Adams 110th Mayor of New York City Mayor Eric Adams has served the people of New York City as an NYPD officer, State Senator, Brooklyn Borough President, and now as the 110th Mayor of the City of New York. Mayor Eric Adams has served the people of New York City as an NYPD officer, State Senator, Brooklyn Borough President, and now as the 110th Mayor of the City of New York. He gave voice to a diverse coalition of working families in all five boroughs and is leading the fight to bring back New York City's economy, reduce inequality, improve public safety, and build a stronger, healthier city that delivers for all New Yorkers. As the representative of one of the nation's largest counties, Eric fought tirelessly to grow the local economy, invest in schools, reduce inequality, improve public safety, and advocate for smart policies and better government that delivers for all New Yorkers.
为了创建独立的工作代理,我们将使用 LangGraph 预构建的 代理。
API 参考:create_react_agent
from langgraph.prebuilt import create_react_agent
research_agent = create_react_agent(
model="openai:gpt-4.1",
tools=[web_search],
prompt=(
"You are a research agent.\n\n"
"INSTRUCTIONS:\n"
"- Assist ONLY with research-related tasks, DO NOT do any math\n"
"- After you're done with your tasks, respond to the supervisor directly\n"
"- Respond ONLY with the results of your work, do NOT include ANY other text."
),
name="research_agent",
)
让我们运行代理以验证其行为是否符合预期。
我们将使用 pretty_print_messages
辅助函数来漂亮地渲染流式代理输出
from langchain_core.messages import convert_to_messages
def pretty_print_message(message, indent=False):
pretty_message = message.pretty_repr(html=True)
if not indent:
print(pretty_message)
return
indented = "\n".join("\t" + c for c in pretty_message.split("\n"))
print(indented)
def pretty_print_messages(update, last_message=False):
is_subgraph = False
if isinstance(update, tuple):
ns, update = update
# skip parent graph updates in the printouts
if len(ns) == 0:
return
graph_id = ns[-1].split(":")[0]
print(f"Update from subgraph {graph_id}:")
print("\n")
is_subgraph = True
for node_name, node_update in update.items():
update_label = f"Update from node {node_name}:"
if is_subgraph:
update_label = "\t" + update_label
print(update_label)
print("\n")
messages = convert_to_messages(node_update["messages"])
if last_message:
messages = messages[-1:]
for m in messages:
pretty_print_message(m, indent=is_subgraph)
print("\n")
API 参考:convert_to_messages
from langchain_core.messages import convert_to_messages
def pretty_print_message(message, indent=False):
pretty_message = message.pretty_repr(html=True)
if not indent:
print(pretty_message)
return
indented = "\n".join("\t" + c for c in pretty_message.split("\n"))
print(indented)
def pretty_print_messages(update, last_message=False):
is_subgraph = False
if isinstance(update, tuple):
ns, update = update
# skip parent graph updates in the printouts
if len(ns) == 0:
return
graph_id = ns[-1].split(":")[0]
print(f"Update from subgraph {graph_id}:")
print("\n")
is_subgraph = True
for node_name, node_update in update.items():
update_label = f"Update from node {node_name}:"
if is_subgraph:
update_label = "\t" + update_label
print(update_label)
print("\n")
messages = convert_to_messages(node_update["messages"])
if last_message:
messages = messages[-1:]
for m in messages:
pretty_print_message(m, indent=is_subgraph)
print("\n")
for chunk in research_agent.stream(
{"messages": [{"role": "user", "content": "who is the mayor of NYC?"}]}
):
pretty_print_messages(chunk)
输出
Update from node agent:
================================== Ai Message ==================================
Name: research_agent
Tool Calls:
tavily_search (call_U748rQhQXT36sjhbkYLSXQtJ)
Call ID: call_U748rQhQXT36sjhbkYLSXQtJ
Args:
query: current mayor of New York City
search_depth: basic
Update from node tools:
================================= Tool Message ==================================
Name: tavily_search
{"query": "current mayor of New York City", "follow_up_questions": null, "answer": null, "images": [], "results": [{"title": "List of mayors of New York City - Wikipedia", "url": "https://en.wikipedia.org/wiki/List_of_mayors_of_New_York_City", "content": "The mayor of New York City is the chief executive of the Government of New York City, as stipulated by New York City's charter.The current officeholder, the 110th in the sequence of regular mayors, is Eric Adams, a member of the Democratic Party.. During the Dutch colonial period from 1624 to 1664, New Amsterdam was governed by the Director of Netherland.", "score": 0.9039154, "raw_content": null}, {"title": "Office of the Mayor | Mayor's Bio | City of New York - NYC.gov", "url": "https://www.nyc.gov/office-of-the-mayor/bio.page", "content": "Mayor Eric Adams has served the people of New York City as an NYPD officer, State Senator, Brooklyn Borough President, and now as the 110th Mayor of the City of New York. He gave voice to a diverse coalition of working families in all five boroughs and is leading the fight to bring back New York City's economy, reduce inequality, improve", "score": 0.8405867, "raw_content": null}, {"title": "Eric Adams - Wikipedia", "url": "https://en.wikipedia.org/wiki/Eric_Adams", "content": "Eric Leroy Adams (born September 1, 1960) is an American politician and former police officer who has served as the 110th mayor of New York City since 2022. Adams was an officer in the New York City Transit Police and then the New York City Police Department (```
数学代理¶
对于数学代理工具,我们将使用普通 Python 函数
def add(a: float, b: float):
"""Add two numbers."""
return a + b
def multiply(a: float, b: float):
"""Multiply two numbers."""
return a * b
def divide(a: float, b: float):
"""Divide two numbers."""
return a / b
math_agent = create_react_agent(
model="openai:gpt-4.1",
tools=[add, multiply, divide],
prompt=(
"You are a math agent.\n\n"
"INSTRUCTIONS:\n"
"- Assist ONLY with math-related tasks\n"
"- After you're done with your tasks, respond to the supervisor directly\n"
"- Respond ONLY with the results of your work, do NOT include ANY other text."
),
name="math_agent",
)
让我们运行数学代理
for chunk in math_agent.stream(
{"messages": [{"role": "user", "content": "what's (3 + 5) x 7"}]}
):
pretty_print_messages(chunk)
输出
Update from node agent:
================================== Ai Message ==================================
Name: math_agent
Tool Calls:
add (call_p6OVLDHB4LyCNCxPOZzWR15v)
Call ID: call_p6OVLDHB4LyCNCxPOZzWR15v
Args:
a: 3
b: 5
Update from node tools:
================================= Tool Message ==================================
Name: add
8.0
Update from node agent:
================================== Ai Message ==================================
Name: math_agent
Tool Calls:
multiply (call_EoaWHMLFZAX4AkajQCtZvbli)
Call ID: call_EoaWHMLFZAX4AkajQCtZvbli
Args:
a: 8
b: 7
Update from node tools:
================================= Tool Message ==================================
Name: multiply
56.0
Update from node agent:
================================== Ai Message ==================================
Name: math_agent
56
2. 使用 langgraph-supervisor
创建监督者¶
为了实现我们的多代理系统,我们将使用预构建的 langgraph-supervisor
库中的 create_supervisor
API 参考:create_supervisor | init_chat_model
from langgraph_supervisor import create_supervisor
from langchain.chat_models import init_chat_model
supervisor = create_supervisor(
model=init_chat_model("openai:gpt-4.1"),
agents=[research_agent, math_agent],
prompt=(
"You are a supervisor managing two agents:\n"
"- a research agent. Assign research-related tasks to this agent\n"
"- a math agent. Assign math-related tasks to this agent\n"
"Assign work to one agent at a time, do not call agents in parallel.\n"
"Do not do any work yourself."
),
add_handoff_back_messages=True,
output_mode="full_history",
).compile()
from IPython.display import display, Image
display(Image(supervisor.get_graph().draw_mermaid_png()))

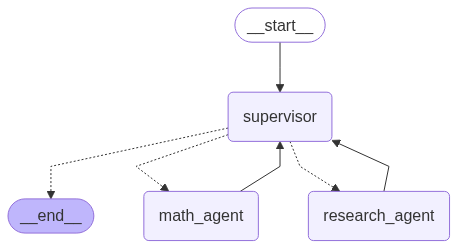

注意:当你运行此代码时,它将生成并显示监督图的视觉表示,展示监督者和工作代理之间的流程。
现在让我们用一个需要两个代理的查询来运行它
- 研究代理将查找必要的 GDP 信息
- 数学代理将执行除法运算以找到纽约州 GDP 的百分比,正如所要求的那样
for chunk in supervisor.stream(
{
"messages": [
{
"role": "user",
"content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
}
]
},
):
pretty_print_messages(chunk, last_message=True)
final_message_history = chunk["supervisor"]["messages"]
输出
Update from node supervisor:
================================= Tool Message ==================================
Name: transfer_to_research_agent
Successfully transferred to research_agent
Update from node research_agent:
================================= Tool Message ==================================
Name: transfer_back_to_supervisor
Successfully transferred back to supervisor
Update from node supervisor:
================================= Tool Message ==================================
Name: transfer_to_math_agent
Successfully transferred to math_agent
Update from node math_agent:
================================= Tool Message ==================================
Name: transfer_back_to_supervisor
Successfully transferred back to supervisor
Update from node supervisor:
================================== Ai Message ==================================
Name: supervisor
In 2024, the US GDP was $29.18 trillion and New York State's GDP was $2.297 trillion. New York State accounted for approximately 7.87% of the total US GDP in 2024.
3. 从头开始创建监督者¶
现在让我们从头开始实现这个相同的多代理系统。我们将需要:
- 设置监督者如何与各个代理通信
- 创建监督代理
- 将监督者和工作代理组合成一个单一的多代理图。
设置代理通信¶
我们需要定义一种监督代理与工作代理通信的方式。在多代理架构中实现这一点的一种常见方式是使用移交 (handoffs),一个代理将控制权移交给另一个代理。移交允许你指定:
- 目的地:要转移到的目标代理
- 负载:要传递给该代理的信息
我们将通过移交工具实现移交,并将这些工具交给监督代理:当监督者调用这些工具时,它将控制权移交给一个工作代理,并将完整的消息历史记录传递给该代理。
API 参考:tool | InjectedToolCallId | InjectedState | StateGraph | START | Command
from typing import Annotated
from langchain_core.tools import tool, InjectedToolCallId
from langgraph.prebuilt import InjectedState
from langgraph.graph import StateGraph, START, MessagesState
from langgraph.types import Command
def create_handoff_tool(*, agent_name: str, description: str | None = None):
name = f"transfer_to_{agent_name}"
description = description or f"Ask {agent_name} for help."
@tool(name, description=description)
def handoff_tool(
state: Annotated[MessagesState, InjectedState],
tool_call_id: Annotated[str, InjectedToolCallId],
) -> Command:
tool_message = {
"role": "tool",
"content": f"Successfully transferred to {agent_name}",
"name": name,
"tool_call_id": tool_call_id,
}
return Command(
goto=agent_name, # (1)!
update={**state, "messages": state["messages"] + [tool_message]}, # (2)!
graph=Command.PARENT, # (3)!
)
return handoff_tool
# Handoffs
assign_to_research_agent = create_handoff_tool(
agent_name="research_agent",
description="Assign task to a researcher agent.",
)
assign_to_math_agent = create_handoff_tool(
agent_name="math_agent",
description="Assign task to a math agent.",
)
- 要移交到的代理或节点的名称。
- 获取代理的消息并将其作为移交的一部分添加到父状态中。下一个代理将看到父状态。
- 指示 LangGraph 我们需要导航到父级多代理图中的代理节点。
创建监督代理¶
然后,让我们使用我们刚刚定义的移交工具创建监督代理。我们将使用预构建的 create_react_agent
supervisor_agent = create_react_agent(
model="openai:gpt-4.1",
tools=[assign_to_research_agent, assign_to_math_agent],
prompt=(
"You are a supervisor managing two agents:\n"
"- a research agent. Assign research-related tasks to this agent\n"
"- a math agent. Assign math-related tasks to this agent\n"
"Assign work to one agent at a time, do not call agents in parallel.\n"
"Do not do any work yourself."
),
name="supervisor",
)
创建多代理图¶
将所有这些整合起来,让我们为我们的整个多代理系统创建一个图。我们将把监督者和各个代理作为子图节点添加。
API 参考:END
from langgraph.graph import END
# Define the multi-agent supervisor graph
supervisor = (
StateGraph(MessagesState)
# NOTE: `destinations` is only needed for visualization and doesn't affect runtime behavior
.add_node(supervisor_agent, destinations=("research_agent", "math_agent", END))
.add_node(research_agent)
.add_node(math_agent)
.add_edge(START, "supervisor")
# always return back to the supervisor
.add_edge("research_agent", "supervisor")
.add_edge("math_agent", "supervisor")
.compile()
)
请注意,我们已经从工作代理添加了显式的边返回到监督者——这意味着它们保证将控制权返回给监督者。如果你希望代理直接响应用户(即,将系统变成一个路由器),你可以删除这些边。
from IPython.display import display, Image
display(Image(supervisor.get_graph().draw_mermaid_png()))
注意:当你运行此代码时,它将生成并显示多代理监督图的视觉表示,展示监督者和工作代理之间的流程。
创建好多代理图后,现在让我们运行它!
for chunk in supervisor.stream(
{
"messages": [
{
"role": "user",
"content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
}
]
},
):
pretty_print_messages(chunk, last_message=True)
final_message_history = chunk["supervisor"]["messages"]
输出
Update from node supervisor:
================================= Tool Message ==================================
Name: transfer_to_research_agent
Successfully transferred to research_agent
Update from node research_agent:
================================== Ai Message ==================================
Name: research_agent
- US GDP in 2024 is projected to be about $28.18 trillion USD (Statista; CBO projection).
- New York State's nominal GDP for 2024 is estimated at approximately $2.16 trillion USD (various economic reports).
- New York State's share of US GDP in 2024 is roughly 7.7%.
Sources:
- https://www.statista.com/statistics/216985/forecast-of-us-gross-domestic-product/
- https://nyassembly.gov/Reports/WAM/2025economic_revenue/2025_report.pdf?v=1740533306
Update from node supervisor:
================================= Tool Message ==================================
Name: transfer_to_math_agent
Successfully transferred to math_agent
Update from node math_agent:
================================== Ai Message ==================================
Name: math_agent
US GDP in 2024: $28.18 trillion
New York State GDP in 2024: $2.16 trillion
Percentage of US GDP from New York State: 7.67%
Update from node supervisor:
================================== Ai Message ==================================
Name: supervisor
Here are your results:
- 2024 US GDP (projected): $28.18 trillion USD
- 2024 New York State GDP (estimated): $2.16 trillion USD
- New York State's share of US GDP: approximately 7.7%
If you need the calculation steps or sources, let me know!
让我们检查一下完整的消息历史记录
输出
================================ Human Message ==================================
find US and New York state GDP in 2024. what % of US GDP was New York state?
================================== Ai Message ===================================
Name: supervisor
Tool Calls:
transfer_to_research_agent (call_KlGgvF5ahlAbjX8d2kHFjsC3)
Call ID: call_KlGgvF5ahlAbjX8d2kHFjsC3
Args:
================================= Tool Message ==================================
Name: transfer_to_research_agent
Successfully transferred to research_agent
================================== Ai Message ===================================
Name: research_agent
Tool Calls:
tavily_search (call_ZOaTVUA6DKrOjWQldLhtrsO2)
Call ID: call_ZOaTVUA6DKrOjWQldLhtrsO2
Args:
query: US GDP 2024 estimate or actual
search_depth: advanced
tavily_search (call_QsRAasxW9K03lTlqjuhNLFbZ)
Call ID: call_QsRAasxW9K03lTlqjuhNLFbZ
Args:
query: New York state GDP 2024 estimate or actual
search_depth: advanced
================================= Tool Message ==================================
Name: tavily_search
{"query": "US GDP 2024 estimate or actual", "follow_up_questions": null, "answer": null, "images": [], "results": [{"url": "https://www.advisorperspectives.com/dshort/updates/2025/05/29/gdp-gross-domestic-product-q1-2025-second-estimate", "title": "Q1 GDP Second Estimate: Real GDP at -0.2%, Higher Than Expected", "content": "> Real gross domestic product (GDP) decreased at an annual rate of 0.2 percent in the first quarter of 2025 (January, February, and March), according to the second estimate released by the U.S. Bureau of Economic Analysis. In the fourth quarter of 2024, real GDP increased 2.4 percent. The decrease in real GDP in the first quarter primarily reflected an increase in imports, which are a subtraction in the calculation of GDP, and a decrease in government spending. These movements were partly [...] by [Harry Mamaysky](https://www.advisor```
重要
你可以看到监督系统将所有单独代理的消息(即它们的内部工具调用循环)附加到完整的消息历史记录中。这意味着在监督者的每个回合中,监督代理都会看到这个完整的历史记录。如果你想对以下方面进行更多控制:
4. 创建委托任务¶
到目前为止,各个代理都依赖解释完整的消息历史记录来确定其任务。另一种方法是要求监督者明确地制定任务。我们可以通过在 handoff_tool
函数中添加 task_description
参数来实现这一点。
API 参考:Send
from langgraph.types import Send
def create_task_description_handoff_tool(
*, agent_name: str, description: str | None = None
):
name = f"transfer_to_{agent_name}"
description = description or f"Ask {agent_name} for help."
@tool(name, description=description)
def handoff_tool(
# this is populated by the supervisor LLM
task_description: Annotated[
str,
"Description of what the next agent should do, including all of the relevant context.",
],
# these parameters are ignored by the LLM
state: Annotated[MessagesState, InjectedState],
) -> Command:
task_description_message = {"role": "user", "content": task_description}
agent_input = {**state, "messages": [task_description_message]}
return Command(
goto=[Send(agent_name, agent_input)],
graph=Command.PARENT,
)
return handoff_tool
assign_to_research_agent_with_description = create_task_description_handoff_tool(
agent_name="research_agent",
description="Assign task to a researcher agent.",
)
assign_to_math_agent_with_description = create_task_description_handoff_tool(
agent_name="math_agent",
description="Assign task to a math agent.",
)
supervisor_agent_with_description = create_react_agent(
model="openai:gpt-4.1",
tools=[
assign_to_research_agent_with_description,
assign_to_math_agent_with_description,
],
prompt=(
"You are a supervisor managing two agents:\n"
"- a research agent. Assign research-related tasks to this assistant\n"
"- a math agent. Assign math-related tasks to this assistant\n"
"Assign work to one agent at a time, do not call agents in parallel.\n"
"Do not do any work yourself."
),
name="supervisor",
)
supervisor_with_description = (
StateGraph(MessagesState)
.add_node(
supervisor_agent_with_description, destinations=("research_agent", "math_agent")
)
.add_node(research_agent)
.add_node(math_agent)
.add_edge(START, "supervisor")
.add_edge("research_agent", "supervisor")
.add_edge("math_agent", "supervisor")
.compile()
)
注意
我们在 handoff_tool
中使用了 Send()
原语。这意味着,每个工作代理不再接收完整的 supervisor
图状态作为输入,而是只看到 Send
负载的内容。在此示例中,我们将任务描述作为一条“人类”消息发送。
现在让我们用相同的输入查询运行它
for chunk in supervisor_with_description.stream(
{
"messages": [
{
"role": "user",
"content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
}
]
},
subgraphs=True,
):
pretty_print_messages(chunk, last_message=True)
输出
Update from subgraph supervisor:
Update from node agent:
================================== Ai Message ==================================
Name: supervisor
Tool Calls:
transfer_to_research_agent (call_tk8q8py8qK6MQz6Kj6mijKua)
Call ID: call_tk8q8py8qK6MQz6Kj6mijKua
Args:
task_description: Find the 2024 GDP (Gross Domestic Product) for both the United States and New York state, using the most up-to-date and reputable sources available. Provide both GDP values and cite the data sources.
Update from subgraph research_agent:
Update from node agent:
================================== Ai Message ==================================
Name: research_agent
Tool Calls:
tavily_search (call_KqvhSvOIhAvXNsT6BOwbPlRB)
Call ID: call_KqvhSvOIhAvXNsT6BOwbPlRB
Args:
query: 2024 United States GDP value from a reputable source
search_depth: advanced
tavily_search (call_kbbAWBc9KwCWKHmM5v04H88t)
Call ID: call_kbbAWBc9KwCWKHmM5v04H88t
Args:
query: 2024 New York state GDP value from a reputable source
search_depth: advanced
Update from subgraph research_agent:
Update from node tools:
================================= Tool Message ==================================
Name: tavily_search
{"query": "2024 United States GDP value from a reputable source", "follow_up_questions": null, "answer": null, "images": [], "results": [{"url": "https://www.focus-economics.com/countries/united-states/", "title": "United States Economy Overview - Focus Economics", "content": "The United States' Macroeconomic Analysis:\n------------------------------------------\n\n**Nominal GDP of USD 29,185 billion in 2024.**\n\n**Nominal GDP of USD 29,179 billion in 2024.**\n\n**GDP per capita of USD 86,635 compared to the global average of USD 10,589.**\n\n**GDP per capita of USD 86,652 compared to the global average of USD 10,589.**\n\n**Average real GDP growth of 2.5% over the last decade.**\n\n**Average real GDP growth of ```
