人机协作 (Human-in-the-loop)

本指南使用新的 interrupt 函数。

自 LangGraph 0.2.31 起,推荐使用 interrupt 函数 来设置断点,因为它简化了人机协作(human-in-the-loop)模式。

如果您正在寻找此概念指南的先前版本,该版本依赖于静态断点和 NodeInterrupt 异常,请点击此处

人机协作(human-in-the-loop)(或“在环”)工作流将人类输入集成到自动化流程中,允许在关键阶段进行决策、验证或更正。这在基于 LLM 的应用程序中尤其有用,因为底层模型可能会偶尔产生不准确的内容。在合规、决策或内容生成等低容错场景中,人类参与通过允许审查、更正或覆盖模型输出来确保可靠性。

用例

基于 LLM 应用程序中人机协作工作流的主要用例包括:

  1. 🛠️ 审查工具调用:人类可以在工具执行前审查、编辑或批准 LLM 请求的工具调用。

  2. ✅ 验证 LLM 输出:人类可以审查、编辑或批准 LLM 生成的内容。

  3. 💡 提供上下文:使 LLM 能够明确请求人类输入以进行澄清或提供额外细节,或支持多轮对话。

interrupt

LangGraph 中的 interrupt 函数 通过在特定节点暂停图,向人类呈现信息,并用他们的输入恢复图,从而实现人机协作工作流。此函数对于批准、编辑或收集额外输入等任务非常有用。interrupt 函数Command 对象结合使用,以人类提供的值恢复图。

import { interrupt } from "@langchain/langgraph";

function humanNode(state: typeof GraphAnnotation.State) {
  const value = interrupt(
    // Any JSON serializable value to surface to the human.
    // For example, a question or a piece of text or a set of keys in the state
    {
      text_to_revise: state.some_text,
    }
  );
  // Update the state with the human's input or route the graph based on the input
  return {
    some_text: value,
  };
}

const graph = workflow.compile({
  checkpointer, // Required for `interrupt` to work
});

// Run the graph until the interrupt
const threadConfig = { configurable: { thread_id: "some_id" } };
await graph.invoke(someInput, threadConfig);

// Below code can run some amount of time later and/or in a different process

// Human input
const valueFromHuman = "...";

// Resume the graph with the human's input
await graph.invoke(new Command({ resume: valueFromHuman }), threadConfig);
{
  some_text: "Edited text";
}
完整代码

以下是关于如何在图中使用 interrupt 的完整示例,如果您想查看代码的实际运行情况。

import { MemorySaver, Annotation, interrupt, Command, StateGraph } from "@langchain/langgraph";

// Define the graph state
const StateAnnotation = Annotation.Root({
  some_text: Annotation<string>()
});

function humanNode(state: typeof StateAnnotation.State) {
   const value = interrupt(
      // Any JSON serializable value to surface to the human.
      // For example, a question or a piece of text or a set of keys in the state
      {
         text_to_revise: state.some_text
      }
   );
   return {
      // Update the state with the human's input
      some_text: value
   };
}

// Build the graph
const workflow = new StateGraph(StateAnnotation)
// Add the human-node to the graph
  .addNode("human_node", humanNode)
  .addEdge("__start__", "human_node")

// A checkpointer is required for `interrupt` to work.
const checkpointer = new MemorySaver();
const graph = workflow.compile({
   checkpointer
});

// Using stream() to directly surface the `__interrupt__` information.
for await (const chunk of await graph.stream(
   { some_text: "Original text" },
   threadConfig
)) {
   console.log(chunk);
}

// Resume using Command
for await (const chunk of await graph.stream(
   new Command({ resume: "Edited text" }),
   threadConfig
)) {
   console.log(chunk);
}
{
   __interrupt__: [
      {
         value: { question: 'Please revise the text', some_text: 'Original text' },
         resumable: true,
         ns: ['human_node:10fe492f-3688-c8c6-0d0a-ec61a43fecd6'],
         when: 'during'
      }
   ]
}
{ human_node: { some_text: 'Edited text' } }

要求

要在图中使用 interrupt,您需要:

  1. 指定检查点 以在每一步之后保存图状态。

  2. 在适当的位置调用 interrupt()。请参阅设计模式部分以获取示例。

  3. 使用线程 ID 运行图,直到触发 interrupt

  4. 使用 invoke/stream 恢复执行(请参阅Command 原语)。

设计模式

通常,您可以通过人机协作工作流执行三种不同的操作

  1. 批准或拒绝:在关键步骤(例如 API 调用)之前暂停图,以审查和批准操作。如果操作被拒绝,您可以阻止图执行该步骤,并可能采取替代操作。此模式通常涉及根据人类的输入对图进行路由

  2. 编辑图状态:暂停图以审查和编辑图状态。这对于纠正错误或使用附加信息更新状态很有用。此模式通常涉及使用人类的输入更新状态。

  3. 获取输入:在图的特定步骤中明确请求人类输入。这对于收集额外信息或上下文以指导代理的决策过程或支持多轮对话很有用。

下面我们展示了可以使用这些操作实现的不同设计模式。

注意: interrupt 函数通过抛出特殊的 GraphInterrupt 错误来传播。因此,您应该避免在 interrupt 函数周围使用 try/catch 块——如果确实使用了,请确保在 catch 块中再次抛出 GraphInterrupt 错误。

批准或拒绝


根据人类的批准或拒绝,图可以继续执行操作或采取替代路径。

在关键步骤(例如 API 调用)之前暂停图,以审查和批准操作。如果操作被拒绝,您可以阻止图执行该步骤,并可能采取替代操作。

import { interrupt, Command } from "@langchain/langgraph";

function humanApproval(state: typeof GraphAnnotation.State): Command {
  const isApproved = interrupt({
    question: "Is this correct?",
    // Surface the output that should be
    // reviewed and approved by the human.
    llm_output: state.llm_output,
  });

  if (isApproved) {
    return new Command({ goto: "some_node" });
  } else {
    return new Command({ goto: "another_node" });
  }
}

// Add the node to the graph in an appropriate location
// and connect it to the relevant nodes.
const graph = graphBuilder
  .addNode("human_approval", humanApproval)
  .compile({ checkpointer });

// After running the graph and hitting the interrupt, the graph will pause.
// Resume it with either an approval or rejection.
const threadConfig = { configurable: { thread_id: "some_id" } };
await graph.invoke(new Command({ resume: true }), threadConfig);

有关更详细的示例,请参阅如何审查工具调用

审查与编辑状态


人类可以审查和编辑图的状态。这对于纠正错误或使用附加信息更新状态很有用。
import { interrupt } from "@langchain/langgraph";

function humanEditing(state: typeof GraphAnnotation.State): Command {
  const result = interrupt({
    // Interrupt information to surface to the client.
    // Can be any JSON serializable value.
    task: "Review the output from the LLM and make any necessary edits.",
    llm_generated_summary: state.llm_generated_summary,
  });

  // Update the state with the edited text
  return {
    llm_generated_summary: result.edited_text,
  };
}

// Add the node to the graph in an appropriate location
// and connect it to the relevant nodes.
const graph = graphBuilder
  .addNode("human_editing", humanEditing)
  .compile({ checkpointer });

// After running the graph and hitting the interrupt, the graph will pause.
// Resume it with the edited text.
const threadConfig = { configurable: { thread_id: "some_id" } };
await graph.invoke(
  new Command({ resume: { edited_text: "The edited text" } }),
  threadConfig
);

有关更详细的示例,请参阅如何使用中断等待用户输入

审查工具调用


人类可以在继续之前审查和编辑 LLM 的输出。这在 LLM 请求的工具调用可能敏感或需要人工监督的应用程序中尤为关键。
import { interrupt, Command } from "@langchain/langgraph";

function humanReviewNode(state: typeof GraphAnnotation.State): Command {
  // This is the value we'll be providing via Command.resume(<human_review>)
  const humanReview = interrupt({
    question: "Is this correct?",
    // Surface tool calls for review
    tool_call: toolCall,
  });

  const [reviewAction, reviewData] = humanReview;

  // Approve the tool call and continue
  if (reviewAction === "continue") {
    return new Command({ goto: "run_tool" });
  }
  // Modify the tool call manually and then continue
  else if (reviewAction === "update") {
    const updatedMsg = getUpdatedMsg(reviewData);
    // Remember that to modify an existing message you will need
    // to pass the message with a matching ID.
    return new Command({
      goto: "run_tool",
      update: { messages: [updatedMsg] },
    });
  }
  // Give natural language feedback, and then pass that back to the agent
  else if (reviewAction === "feedback") {
    const feedbackMsg = getFeedbackMsg(reviewData);
    return new Command({
      goto: "call_llm",
      update: { messages: [feedbackMsg] },
    });
  }
}

有关更详细的示例,请参阅如何审查工具调用

多轮对话

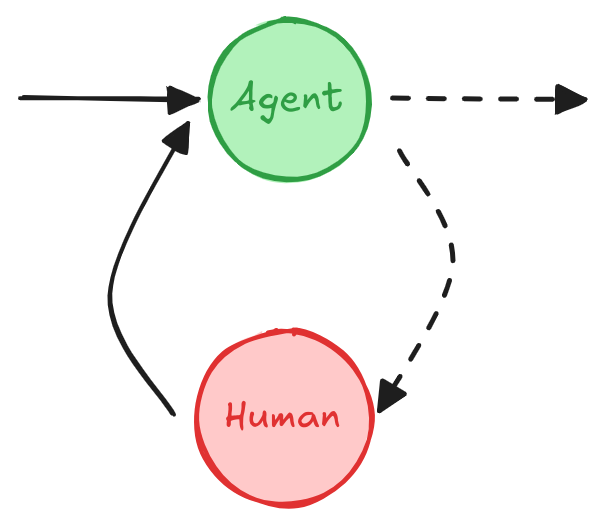

一种多轮对话架构,其中代理人类节点来回循环,直到代理决定将对话移交给另一个代理或系统的另一部分。

多轮对话涉及代理和人类之间的多次来回交互,这可以允许代理以对话方式从人类那里收集额外信息。

这种设计模式在由多个代理组成的 LLM 应用程序中很有用。一个或多个代理可能需要与人类进行多轮对话,其中人类在对话的不同阶段提供输入或反馈。为简单起见,下面的代理实现被说明为单个节点,但实际上它可能是由多个节点组成的更大图的一部分,并包含条件边。

在此模式中,每个代理都有自己的人类节点用于收集用户输入。

这可以通过为人类节点使用唯一名称(例如,“代理 1 的人类节点”,“代理 2 的人类节点”)或使用子图(其中子图包含人类节点和代理节点)来实现。

import { interrupt } from "@langchain/langgraph";

function humanInput(state: typeof GraphAnnotation.State) {
  const humanMessage = interrupt("human_input");

  return {
    messages: [
      {
        role: "human",
        content: humanMessage
      }
    ]
  };
}

function agent(state: typeof GraphAnnotation.State) {
  // Agent logic
  // ...
}

const graph = graphBuilder
  .addNode("human_input", humanInput)
  .addEdge("human_input", "agent")
  .compile({ checkpointer });

// After running the graph and hitting the interrupt, the graph will pause.
// Resume it with the human's input.
await graph.invoke(
  new Command({ resume: "hello!" }),
  threadConfig
);

在此模式中,单个人类节点用于收集多个代理的用户输入。活动代理从状态中确定,因此在收集人类输入后,图可以路由到正确的代理。

import { interrupt, Command, MessagesAnnotation } from "@langchain/langgraph";

function humanNode(state: typeof MessagesAnnotation.State): Command {
  /**
   * A node for collecting user input.
   */
  const userInput = interrupt("Ready for user input.");

  // Determine the **active agent** from the state, so
  // we can route to the correct agent after collecting input.
  // For example, add a field to the state or use the last active agent.
  // or fill in `name` attribute of AI messages generated by the agents.
  const activeAgent = ...;

  return new Command({
    goto: activeAgent,
    update: {
      messages: [{
        role: "human",
        content: userInput,
      }]
    }
  });
}

有关更详细的示例,请参阅如何实现多轮对话

验证人类输入

如果您需要在图本身中(而不是在客户端)验证人类提供的输入,可以通过在单个节点中使用多个中断调用来实现。

import { interrupt } from "@langchain/langgraph";

function humanNode(state: typeof GraphAnnotation.State) {
  /**
   * Human node with validation.
   */
  let question = "What is your age?";

  while (true) {
    const answer = interrupt(question);

    // Validate answer, if the answer isn't valid ask for input again.
    if (typeof answer !== "number" || answer < 0) {
      question = `'${answer}' is not a valid age. What is your age?`;
      continue;
    } else {
      // If the answer is valid, we can proceed.
      break;
    }
  }

  console.log(`The human in the loop is ${answer} years old.`);

  return {
    age: answer,
  };
}

Command 原语

当使用 interrupt 函数时,图将在中断处暂停并等待用户输入。

图的执行可以使用 Command 原语恢复,该原语可以通过 invokestream 方法传递。

Command 原语提供了几个选项来控制和修改恢复期间图的状态:

  1. 将值传递给 interrupt:使用 new Command({ resume: value }) 向图提供数据,例如用户的响应。执行从使用 interrupt 的节点的开头恢复,但是,这次 interrupt(...) 调用将返回在 new Command({ resume: value }) 中传递的值,而不是暂停图。
// Resume graph execution with the user's input.
await graph.invoke(new Command({ resume: { age: "25" } }), threadConfig);
  1. 更新图状态:使用 Command({ goto: ..., update: ... }) 修改图状态。请注意,恢复从使用 interrupt 的节点的开头开始。执行从使用 interrupt 的节点的开头恢复,但带有更新后的状态。
// Update the graph state and resume.
// You must provide a `resume` value if using an `interrupt`.
await graph.invoke(
  new Command({ resume: "Let's go!!!", update: { foo: "bar" } }),
  threadConfig
);

通过利用 Command,您可以恢复图的执行,处理用户输入,并动态调整图的状态。

invoke 结合使用

当您使用 stream 运行图时,您将收到一个 Interrupt 事件,它会通知您 interrupt 已被触发。

invoke 不会返回中断信息。要访问此信息,您必须在调用 invoke 后使用 getState 方法检索图状态。

// Run the graph up to the interrupt
const result = await graph.invoke(inputs, threadConfig);

// Get the graph state to get interrupt information.
const state = await graph.getState(threadConfig);

// Print the state values
console.log(state.values);

// Print the pending tasks
console.log(state.tasks);

// Resume the graph with the user's input.
await graph.invoke(new Command({ resume: { age: "25" } }), threadConfig);
{
  foo: "bar";
} // State values

[
  {
    id: "5d8ffc92-8011-0c9b-8b59-9d3545b7e553",
    name: "node_foo",
    path: ["__pregel_pull", "node_foo"],
    error: null,
    interrupts: [
      {
        value: "value_in_interrupt",
        resumable: true,
        ns: ["node_foo:5d8ffc92-8011-0c9b-8b59-9d3545b7e553"],
        when: "during",
      },
    ],
    state: null,
    result: null,
  },
]; // Pending tasks. interrupts

从中断恢复如何工作?

使用 interrupt 的一个关键方面是理解恢复的工作原理。当您在 interrupt 后恢复执行时,图的执行从上次触发 interrupt图节点开头开始。

从节点开头到 interrupt所有代码都将重新执行。

let counter = 0;

function node(state: State) {
  // All the code from the beginning of the node to the interrupt will be re-executed
  // when the graph resumes.
  counter += 1;

  console.log(`> Entered the node: ${counter} # of times`);

  // Pause the graph and wait for user input.
  const answer = interrupt();

  console.log("The value of counter is:", counter);
  // ...
}

恢复图时,计数器将第二次递增,导致以下输出:

> Entered the node: 2 # of times
The value of counter is: 2

常见陷阱

副作用

将带有副作用的代码(例如 API 调用)放在 interrupt 之后,以避免重复,因为这些代码在每次节点恢复时都会重新触发。

当节点从 interrupt 恢复时,此代码将再次重新执行 API 调用。如果 API 调用不是幂等的或者成本很高,这可能会导致问题。

import { interrupt } from "@langchain/langgraph";

function humanNode(state: typeof GraphAnnotation.State) {
  /**
   * Human node with validation.
   */
  apiCall(); // This code will be re-executed when the node is resumed.

  const answer = interrupt(question);
}
import { interrupt } from "@langchain/langgraph";

function humanNode(state: typeof GraphAnnotation.State) {
  /**
   * Human node with validation.
   */

  const answer = interrupt(question);

  apiCall(answer); // OK as it's after the interrupt
}
import { interrupt } from "@langchain/langgraph";

function humanNode(state: typeof GraphAnnotation.State) {
  /**
   * Human node with validation.
   */

  const answer = interrupt(question);

  return {
    answer
  };
}

function apiCallNode(state: typeof GraphAnnotation.State) {
  apiCall(); // OK as it's in a separate node
}

作为函数调用的子图

作为函数调用子图时,父图将从调用子图的节点开头(以及触发 interrupt 的地方)恢复执行。同样,子图将从调用 interrupt() 函数的节点开头恢复。

例如:

async function nodeInParentGraph(state: typeof GraphAnnotation.State) {
    someCode();  // <-- This will re-execute when the subgraph is resumed.
    // Invoke a subgraph as a function.
    // The subgraph contains an `interrupt` call.
    const subgraphResult = await subgraph.invoke(someInput);
    ...
}
示例:父图和子图的执行流程

假设我们有一个包含 3 个节点的父图:

父图node_1node_2(子图调用) → node_3

子图有 3 个节点,其中第二个节点包含 interrupt

子图sub_node_1sub_node_2interrupt) → sub_node_3

恢复图时,执行将按以下方式进行:

  1. 跳过父图中的 node_1(已执行,图状态已保存为快照)。
  2. 从头开始重新执行父图中的 node_2
  3. 跳过子图中的 sub_node_1(已执行,图状态已保存为快照)。
  4. 从头开始重新执行子图中的 sub_node_2
  5. 继续执行 sub_node_3 和后续节点。

这是一个缩写的示例代码,您可以用来理解子图如何与中断一起工作。它计算每个节点进入的次数并打印计数。

import {
  StateGraph,
  START,
  interrupt,
  Command,
  MemorySaver,
  Annotation
} from "@langchain/langgraph";

const GraphAnnotation = Annotation.Root({
  stateCounter: Annotation<number>({
    reducer: (a, b) => a + b,
    default: () => 0
  })
})

let counterNodeInSubgraph = 0;

function nodeInSubgraph(state: typeof GraphAnnotation.State) {
  counterNodeInSubgraph += 1;  // This code will **NOT** run again!
  console.log(`Entered 'nodeInSubgraph' a total of ${counterNodeInSubgraph} times`);
  return {};
}

let counterHumanNode = 0;

async function humanNode(state: typeof GraphAnnotation.State) {
  counterHumanNode += 1; // This code will run again!
  console.log(`Entered humanNode in sub-graph a total of ${counterHumanNode} times`);
  const answer = await interrupt("what is your name?");
  console.log(`Got an answer of ${answer}`);
  return {};
}

const checkpointer = new MemorySaver();

const subgraphBuilder = new StateGraph(GraphAnnotation)
  .addNode("some_node", nodeInSubgraph)
  .addNode("human_node", humanNode)
  .addEdge(START, "some_node")
  .addEdge("some_node", "human_node")
const subgraph = subgraphBuilder.compile({ checkpointer });

let counterParentNode = 0;

async function parentNode(state: typeof GraphAnnotation.State) {
  counterParentNode += 1; // This code will run again on resuming!
  console.log(`Entered 'parentNode' a total of ${counterParentNode} times`);

  // Please note that we're intentionally incrementing the state counter
  // in the graph state as well to demonstrate that the subgraph update
  // of the same key will not conflict with the parent graph (until
  const subgraphState = await subgraph.invoke(state);
  return subgraphState;
}

const builder = new StateGraph(GraphAnnotation)
  .addNode("parent_node", parentNode)
  .addEdge(START, "parent_node")

// A checkpointer must be enabled for interrupts to work!
const graph = builder.compile({ checkpointer });

const config = {
  configurable: {
    thread_id: crypto.randomUUID(),
  }
};

for await (const chunk of await graph.stream({ stateCounter: 1 }, config)) {
  console.log(chunk);
}

console.log('--- Resuming ---');

for await (const chunk of await graph.stream(new Command({ resume: "35" }), config)) {
  console.log(chunk);
}

这将打印出

--- First invocation ---
In parent node: { foo: 'bar' }
Entered 'parentNode' a total of 1 times
Entered 'nodeInSubgraph' a total of 1 times
Entered humanNode in sub-graph a total of 1 times
{ __interrupt__: [{ value: 'what is your name?', resumable: true, ns: ['parent_node:0b23d72f-aaba-0329-1a59-ca4f3c8bad3b', 'human_node:25df717c-cb80-57b0-7410-44e20aac8f3c'], when: 'during' }] }

--- Resuming ---
In parent node: { foo: 'bar' }
Entered 'parentNode' a total of 2 times
Entered humanNode in sub-graph a total of 2 times
Got an answer of 35
{ parent_node: null }

使用多个中断

单个节点中使用多个中断可能有助于实现诸如验证人类输入之类的模式。然而,如果在同一节点中使用多个中断且不小心处理,可能会导致意外行为。

当一个节点包含多个中断调用时,LangGraph 会为执行该任务的节点保留一个特定于任务的恢复值列表。每当执行恢复时,它都会从节点的开头开始。对于遇到的每个中断,LangGraph 都会检查任务的恢复列表中是否存在匹配的值。匹配是严格基于索引的,因此中断调用在节点中的顺序至关重要。

为避免问题,请避免在执行之间动态更改节点结构。这包括添加、删除或重新排序中断调用,因为此类更改可能导致索引不匹配。这些问题通常源于非常规模式,例如通过 Command.resume(...).update(SOME_STATE_MUTATION) 改变状态或依赖全局变量动态修改节点结构。

不正确的代码示例
import { v4 as uuidv4 } from "uuid";
import {
  StateGraph,
  MemorySaver,
  START,
  interrupt,
  Command,
  Annotation
} from "@langchain/langgraph";

const GraphAnnotation = Annotation.Root({
  name: Annotation<string>(),
  age: Annotation<string>()
});

function humanNode(state: typeof GraphAnnotation.State) {
  let name;
  if (!state.name) {
    name = interrupt("what is your name?");
  } else {
    name = "N/A";
  }

  let age;
  if (!state.age) {
    age = interrupt("what is your age?");
  } else {
    age = "N/A";
  }

  console.log(`Name: ${name}. Age: ${age}`);

  return {
    age,
    name,
  };
}

const builder = new StateGraph(GraphAnnotation)
  .addNode("human_node", humanNode);
  .addEdge(START, "human_node");

// A checkpointer must be enabled for interrupts to work!
const checkpointer = new MemorySaver();

const graph = builder.compile({ checkpointer });

const config = {
  configurable: {
    thread_id: uuidv4(),
  }
};

for await (const chunk of await graph.stream({ age: undefined, name: undefined }, config)) {
  console.log(chunk);
}

for await (const chunk of await graph.stream(
  new Command({ resume: "John", update: { name: "foo" } }),
  config
)) {
  console.log(chunk);
}
{ __interrupt__: [{
  value: 'what is your name?',
  resumable: true,
  ns: ['human_node:3a007ef9-c30d-c357-1ec1-86a1a70d8fba'],
  when: 'during'
}]}
Name: N/A. Age: John
{ human_node: { age: 'John', name: 'N/A' } }

附加资源 📚
